Edelbrock Victor Jr. Sportsman Intake Manifold - SB Chevy - 2V

Out of stock
SKU: EDE2901
Intake Manifold, Victor JR. Sportsman 2V 23 Degree, 2-Barrel Flange Carburetor, Single Plane, Aluminum, Natural, Small Block Chevy, Each
Earn 1 Point on this purchase. Learn more
$442.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

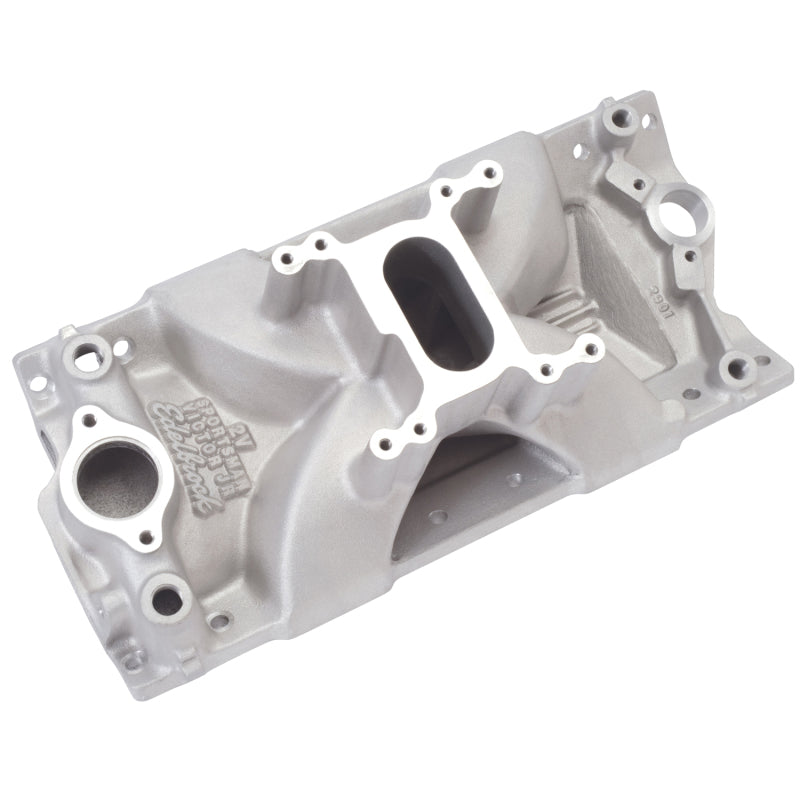

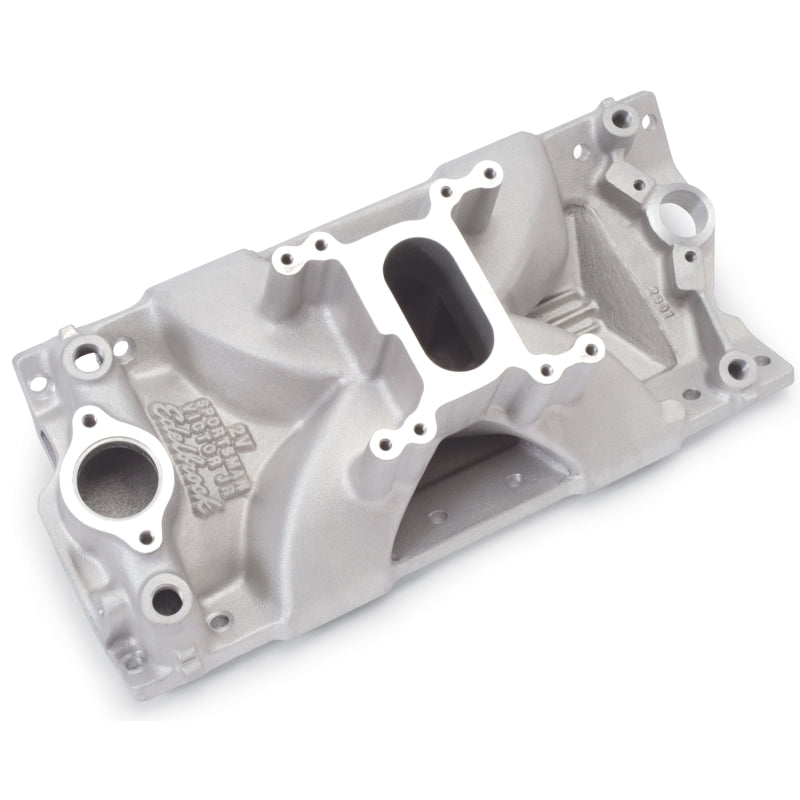

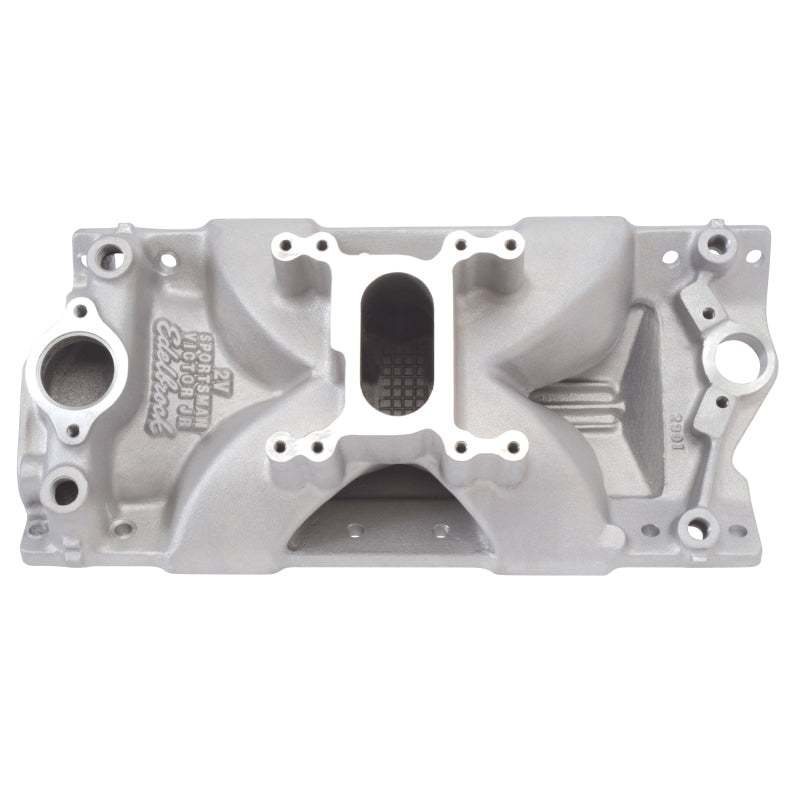

The Victor Jr. Sportsman 2V intake manifold #2901 is a dedicated design for the 2V racer and provides outstanding performance from 3500 to 7000 rpm. The runners are sized especially for 2V racing engines for the ultimate combination of torque and horsepower with better fuel distribution. An extra tall carburetor pad eliminates the need for spacers, and rear water outlets allow for a four corner coolant flow path if desired. It features dual distributor clamp locations, and port exits are sized to match cast iron Chevrolet Bowtie heads. The Victor Jr. Sportsman 2V #2912 for Vortec heads has all the features of #2901 for the racer using the popular GM (Vortec L31) cast iron cylinder heads. Both manifolds accept standard restrictor plates and carb adapters. CARB RECOMMENDATIONS: Holley #0-4412 (500 cfm). INSTALLATION NOTE: Recommended intake gasket: Edelbrock #7217 or Fel-Pro #1206 for #2901; for #2912 use Edelbrock #7235 or GM #89017465.

  • 2901, Chevy, Chevrolet, Edelbrock, Intake Manifold, Intake, Manifold, Single-Plane, Victor JR., Satin
  • Carb recommendations: Holley #0-4412 (500 cfm)
  • No provisions for exhaust heated chokes or EGR.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
  • Each intake runner should be matched to the cylinder head port size or Fel-Pro gasket #1206 on all four sides of runner exit.
  • Manifold comes with special carb gasket matching plenum flange.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Intake Manifold
  • Victor JR. Sportsman 2V 23 Degree
  • 2-Barrel Flange Carburetor
  • Single Plane
  • Aluminum
  • Natural
  • Small Block Chevy
  • Sold Individually
    •
