Home » Edelbrock Victor Jr. Intake Manifold - SB Chevy
Edelbrock

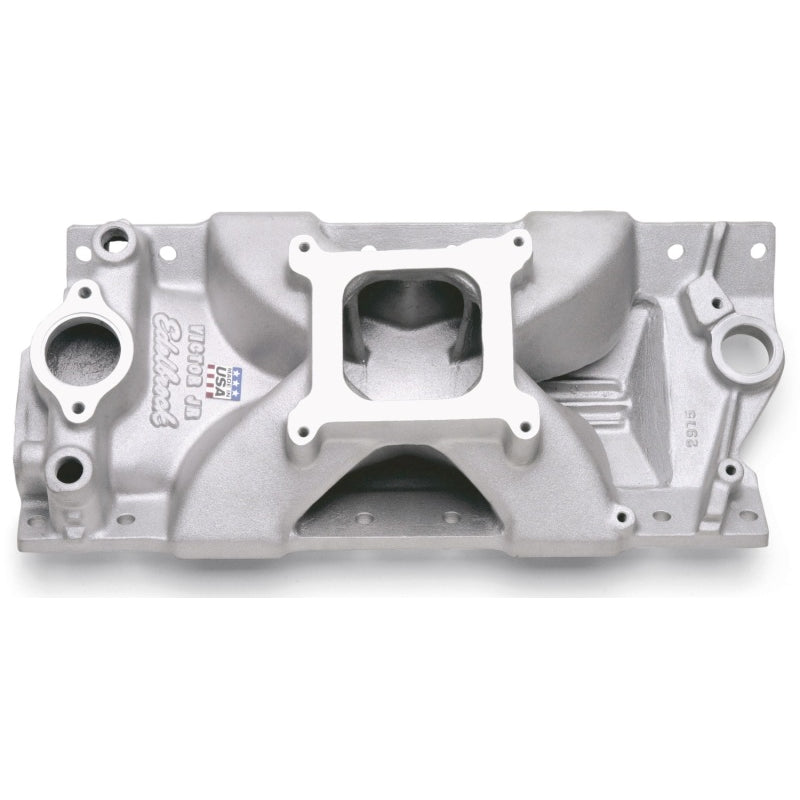

Edelbrock Victor Jr. Intake Manifold - SB Chevy

In stock
SKU: EDE2975
Intake Manifold, Victor JR. 23 Degree, Square Bore, Single Plane, Aluminum, Natural, Small Block Chevy, Each
Earn 1 Point on this purchase. Learn more
$410.12
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

These versatile manifolds are excellent for many applications from drag to circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. #72975 features a pre-assembled ready to bolt-on direct port nitrous system out-of-the-box, see page 27. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. Installation Notes: Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206.

  • 2975, Chevy, Chevrolet, Edelbrock, Intake Manifold, Intake, Manifold, Single-Plane, Victor JR., Satin
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Intake Manifold
  • Victor JR. 23 Degree
  • Square Bore
  • Single Plane
  • Aluminum
  • Natural
  • Small Block Chevy
  • Sold Individually
    •
