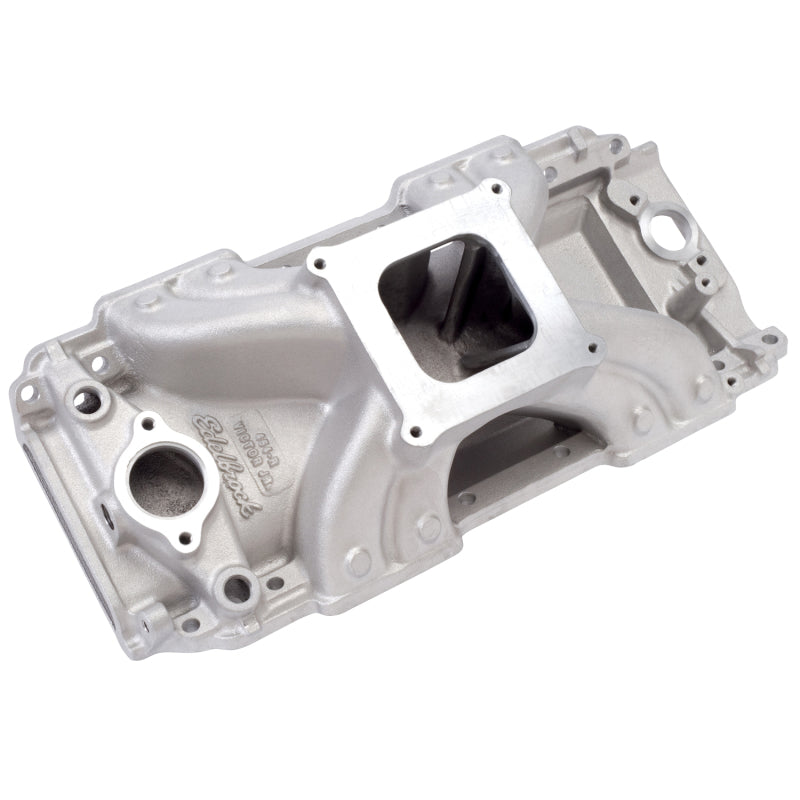

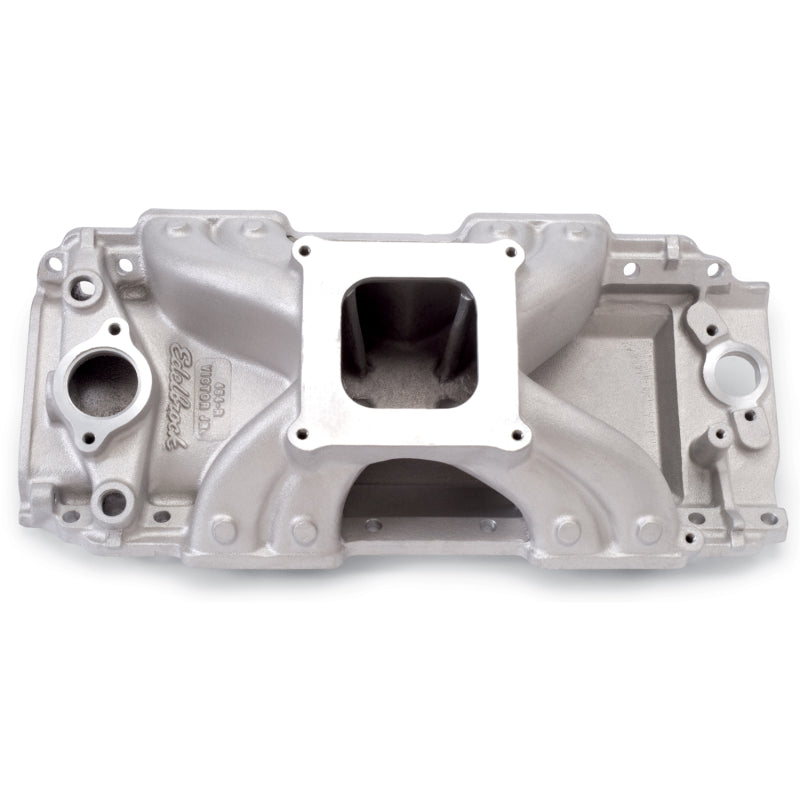

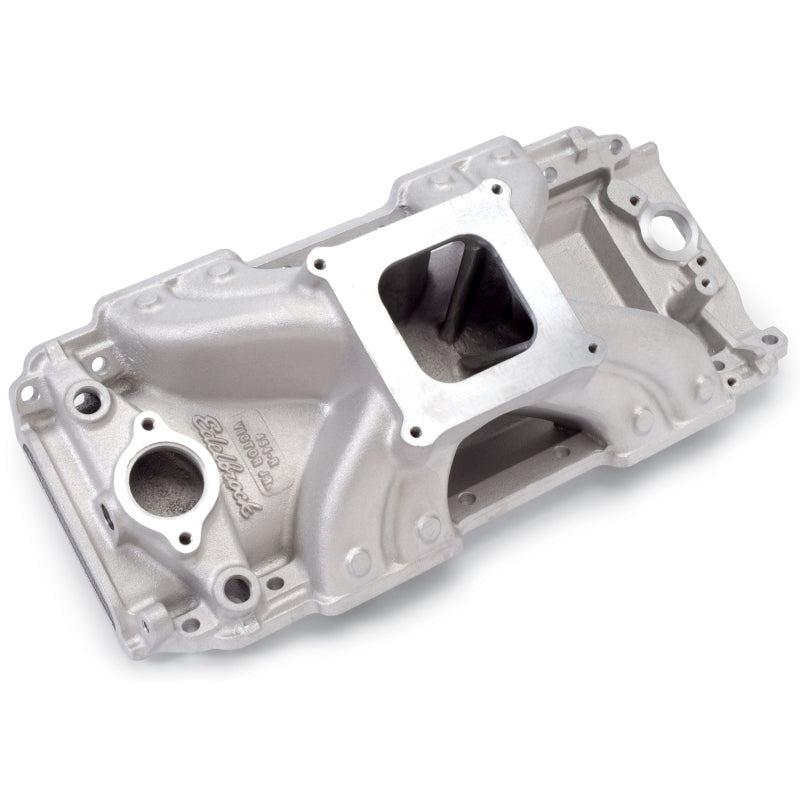

Edelbrock Victor Jr. 454-R Intake Manifold - Cast

In stock
SKU: EDE2902
Intake Manifold, Victor JR. 454-R, Square Bore, Single Plane, Rectangle Port, Aluminum, Natural, Big Block Chevy, Each

Earn [points_amount] when you buy this item.

$408.56
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Designed for competition 396-502 big-block Chevys. #2902 fits rectangular-port heads and #72902 features out-of-the-box pre-assembled direct port nitrous system ready to bolt on and go! Intake manifold #2904 fits large oval-port heads (1975 & earlier). These intakes are designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. These manifolds are especially suited to 502 c.i.d. and smaller competition engines. This manifold is cast with 3/8" more material in the corners of the ports for a final radius of 3/4". This extra material allows for custom port matching for use with various cylinder head applications. It is designed to be matched with our Edelbrock/Musi Victor 24 ° Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential! Victor Jr. 454-R #2902 will fit Edelbrock Victor race heads #77609 and Victor 24 ° #77409, #77459, #77429, #77479 and #77489. CARB RECOMMENDATIONS: Use appropriate racing Carburetor. THROTTLE BODY RECOMMENDATIONS: Use #3878 4V series or #3849 EFI elbow and #3869 90mm throttle body. THROTTLE BODY RECOMMENDATIONS: Use #3878 4V series or #3849 EFI elbow and #3869 90mm throttle body.

  • 2902, Chevy, Chevrolet, Edelbrock, Intake Manifold, Intake, Manifold, Single-Plane, Victor JR., Satin
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Intake Manifold
  • Victor JR. 454-R
  • Square Bore
  • Single Plane
  • Rectangle Port
  • Aluminum
  • Natural
  • Big Block Chevy
  • Sold Individually
    •
