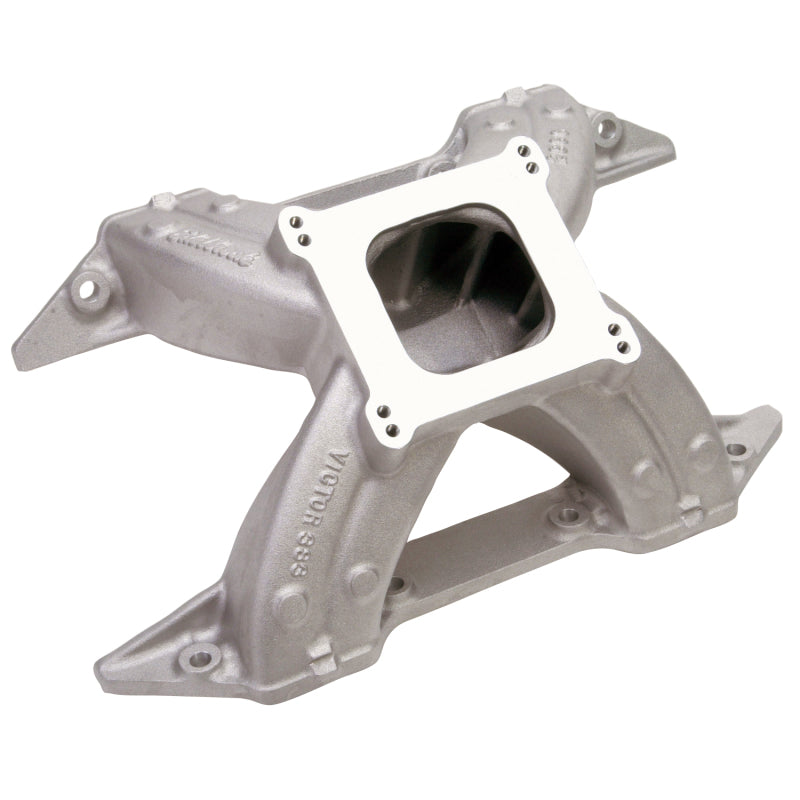

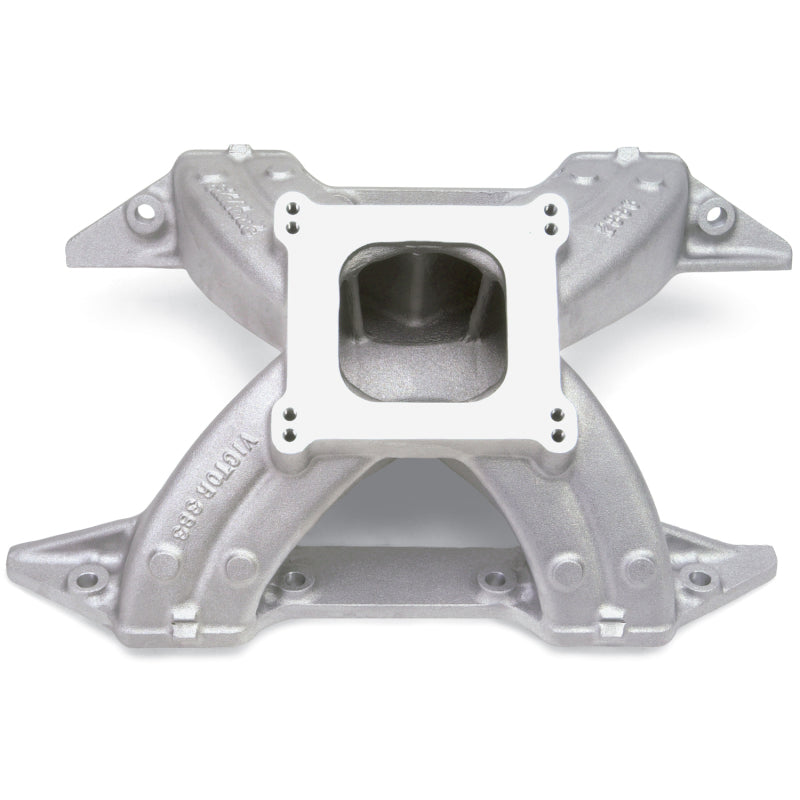

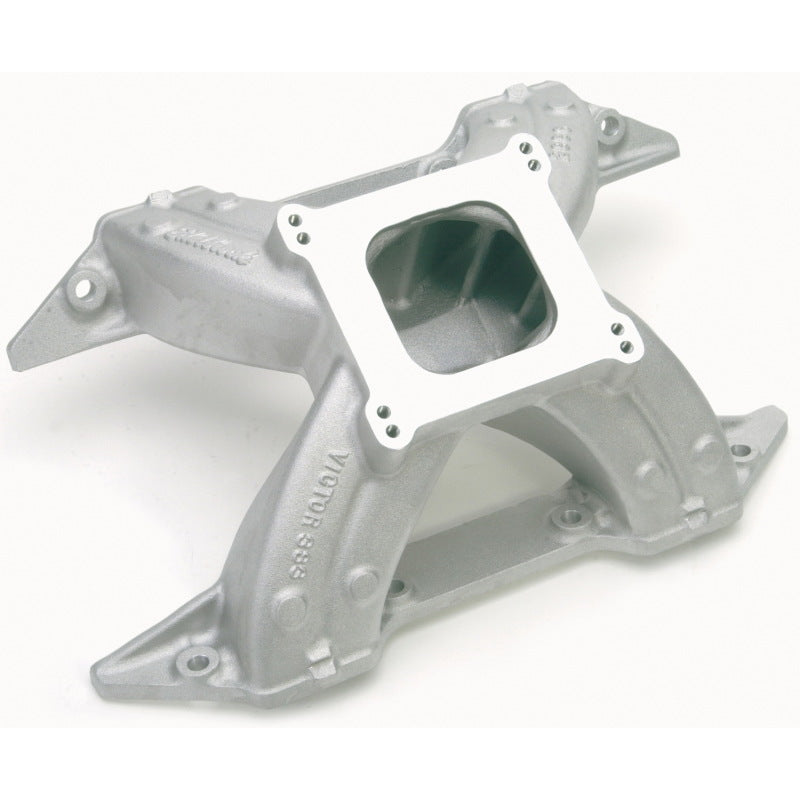

Edelbrock Victor 383 Intake Manifold - Cast

Only 3 left
SKU: EDE2886
Intake Manifold, Victor 383, Square Bore, Single Plane, Aluminum, Natural, Mopar B-Series, Each
Earn 1 Point on this purchase. Learn more
$406.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

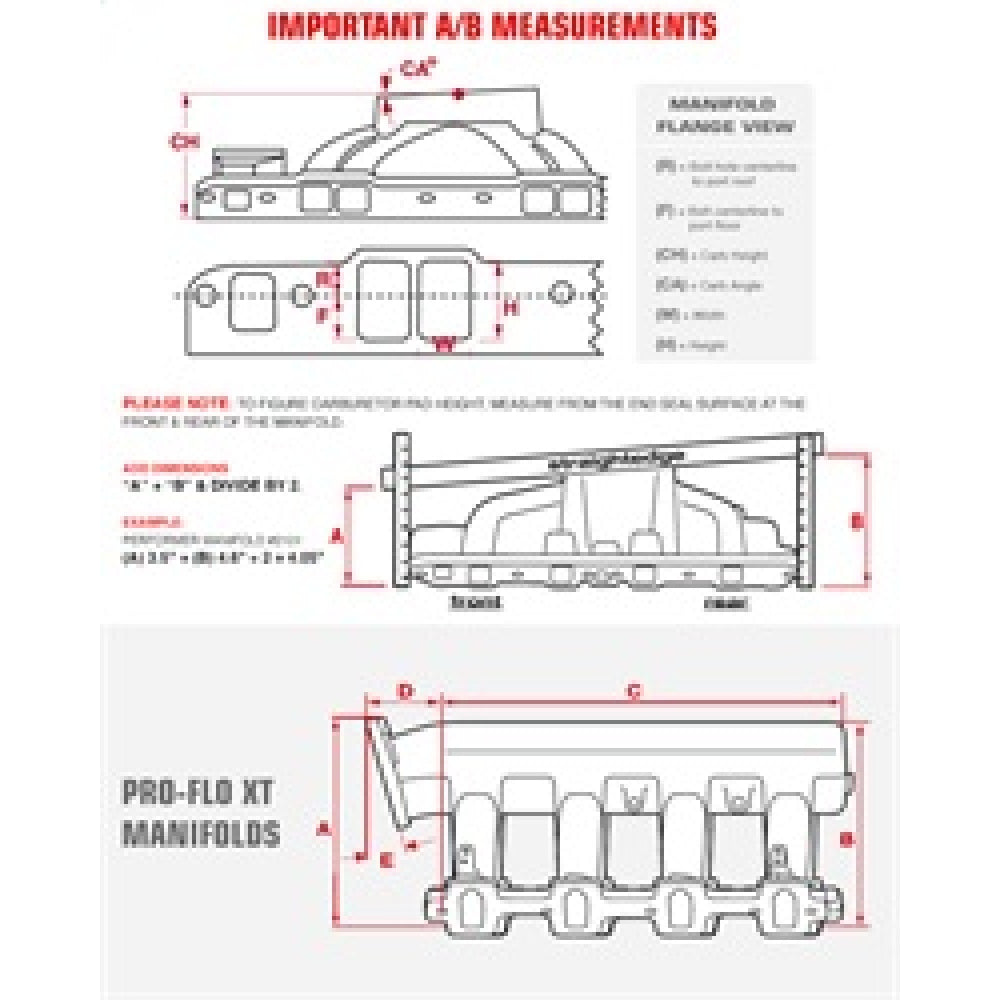

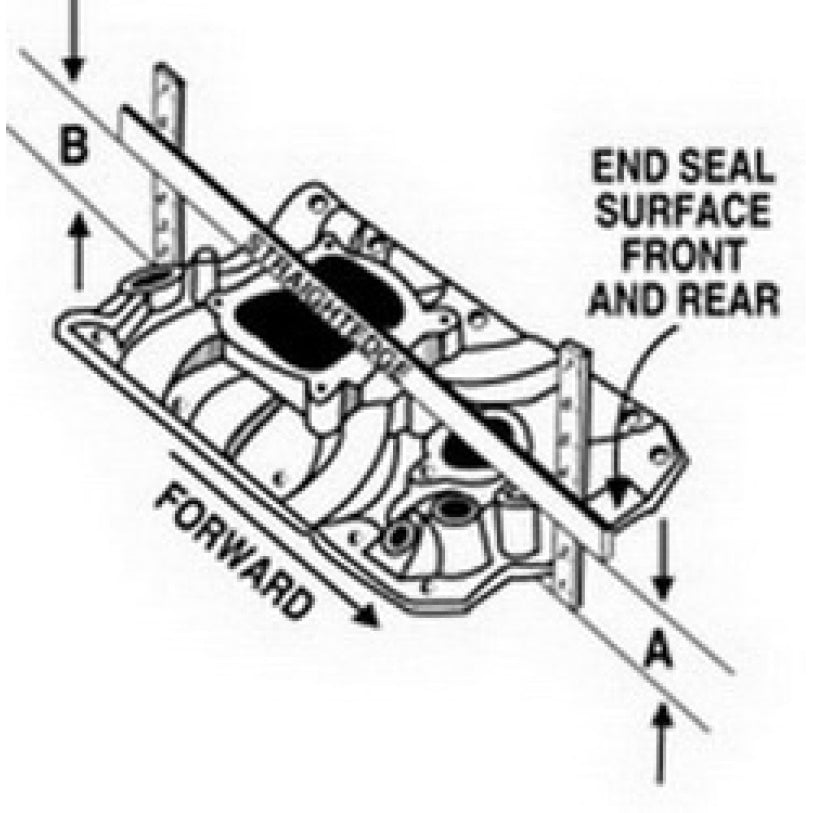

Now the latest Victor series design is available for competition Chrysler B Series Wedge engines (361-383-400 c.i.d.). The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, line of sight layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Includes nitrous bosses. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. The #7799 valley cover is required when used with Edelbrock Victor series cylinder heads. Carburetor Recommendations: Use appropriate racing carburetor. Installation Notes: Recommended intake gasket: #7225. Manifold height: A-6.13", B-6.13". Port exit dimensions: 1.15" x 2.17".

  • 2886, Chrysler, Edelbrock, Intake Manifold, Intake, Manifold, Single-Plane, Victor, Satin
  • Now the latest Victor series design is available for competition Chrysler B Series Wedge engines (361-383-400 c.i.d.). The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, line of sight layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. Weve added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Includes nitrous bosses. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. The #7799 valley cover is required when used with Edelbrock Victor series cylinder heads. Carburetor Recommendations: Use appropriate racing carburetor. Installation Notes: Recommended intake gasket: #7225. Manifold height: A-6.13", B-6.13". Port exit dimensions: 1.15" x 2.17".
  • Carb recommendations: Use appropriate Racing carburetor
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Intake Manifold
  • Victor 383
  • Square Bore
  • Single Plane
  • Aluminum
  • Natural
  • Mopar B-Series
  • Sold Individually
    •
