Home » Edelbrock Performer Vortec Intake Manifold - (Idle-5500 RPM) - SB Chevrolet
Edelbrock

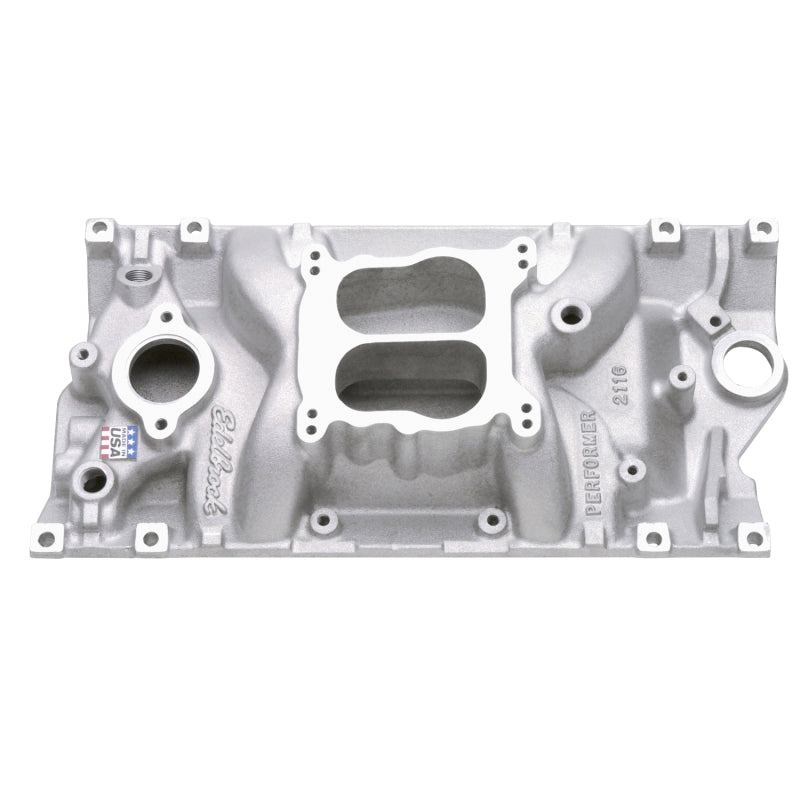

Edelbrock Performer Vortec Intake Manifold - (Idle-5500 RPM) - SB Chevrolet

In stock
SKU: EDE2116
Intake Manifold, Performer, Spread / Square Bore, Dual Plane, Aluminum, Natural, Vortec, Small Block Chevy, Each
Earn 1 Point on this purchase. Learn more
$332.82
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Based on the popular and powerful Edelbrock #2101, this dual-plane intake is designed for the street rod, industrial and engine swap market utilizing 262-400 c.i.d. Chevy V8s with 1996 and later Vortec (L31) cast iron or the Edelbrock E-Tec aluminum heads. Manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. No provision for exhaust heated chokes. Accepts both square-bore and spread-bore carbs and late model water neck, alternator, HEI and air conditioning brackets. Will not fit under stock Corvette hood. Available with standard, black or EnduraShine finish for a look you've got to see to believe. For high performance engines operating from 1500-6500 rpm, see the Performer RPM Vortec manifold.

  • 2116, Chevy, Chevrolet, Edelbrock, Intake Manifold, Intake, Manifold, Dual-Plane, Performer, Satin

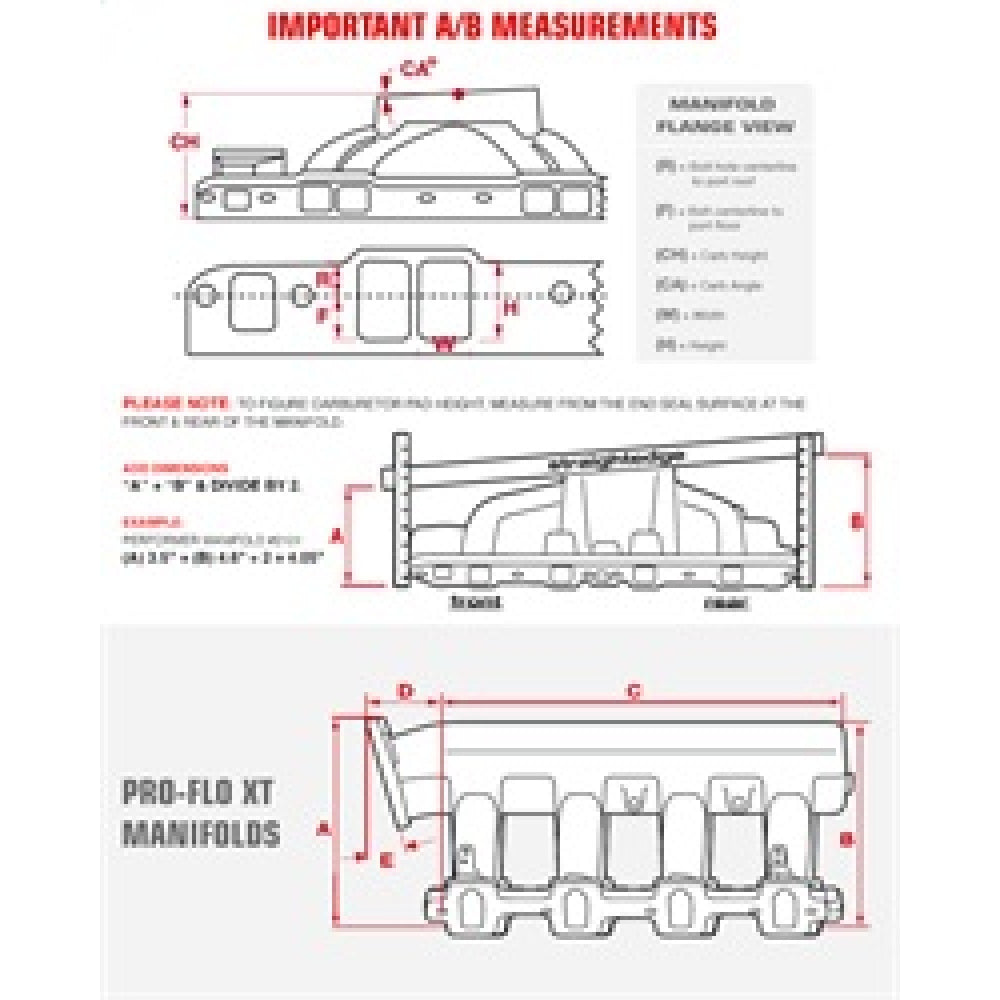

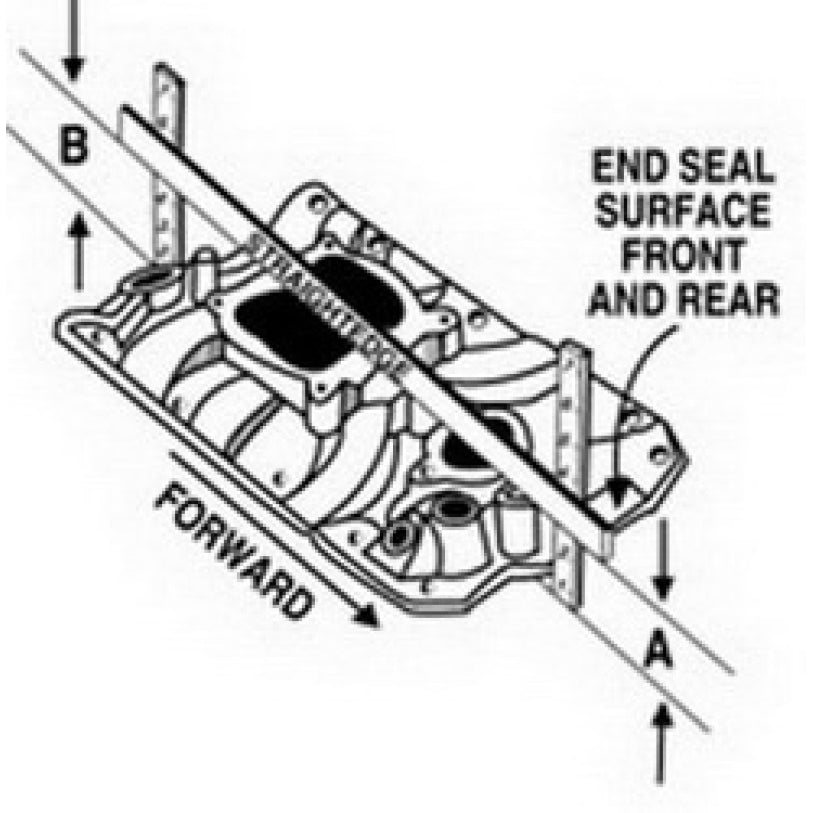

  • Carb pad height: 4.57"
  • Carb recommendations: OEM 4-Bbl (pre-1981, Electric choke ONLY) Use #8032 throttle bracket. Edelbrock AVS2 Series or Performer Series 500-650cfm, use bracket #8032 for 1972-78.
  • Port exit dimensions: 2.05" tall with slanted side walls
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Stock brackets will require modification to fit the upright manifold bolt holes.
  • Will not fit under stock Corvette hood.
  • Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Intake Manifold
  • Performer
  • Spread / Square Bore
  • Dual Plane
  • Aluminum
  • Natural
  • Vortec
  • Small Block Chevy
  • Sold Individually
    •
