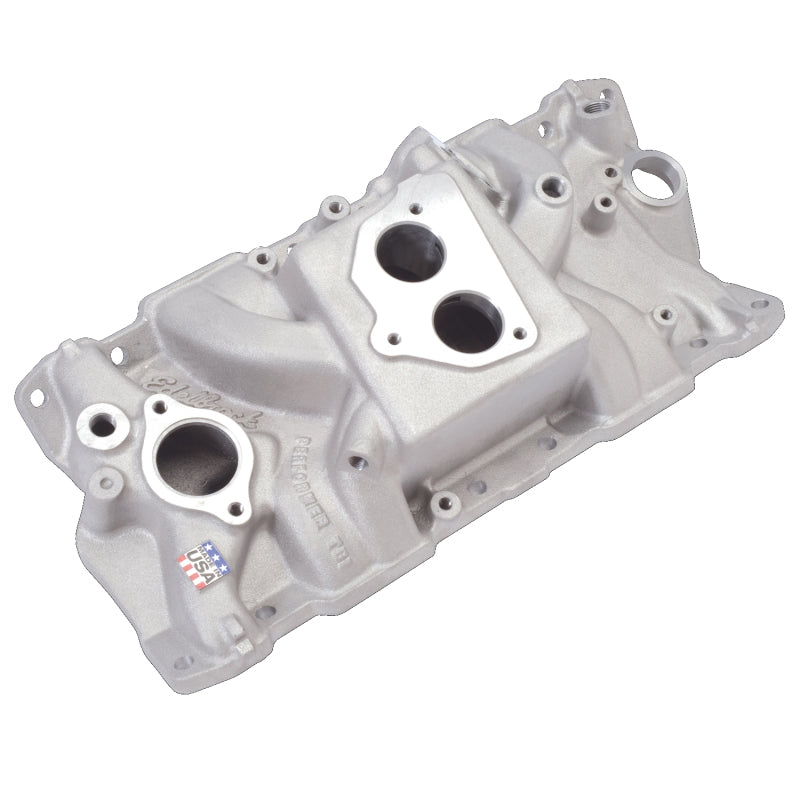

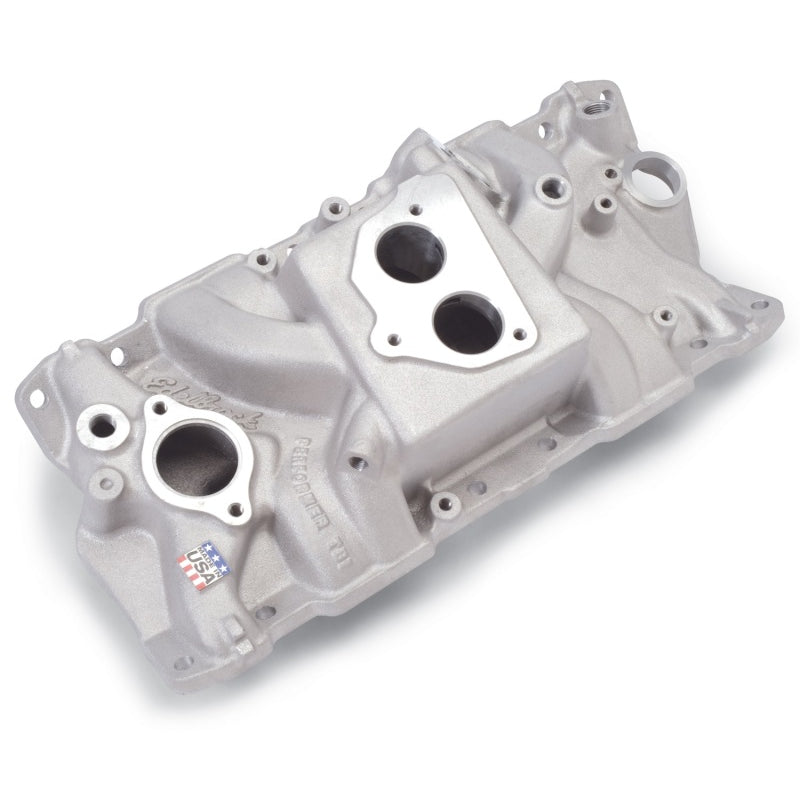

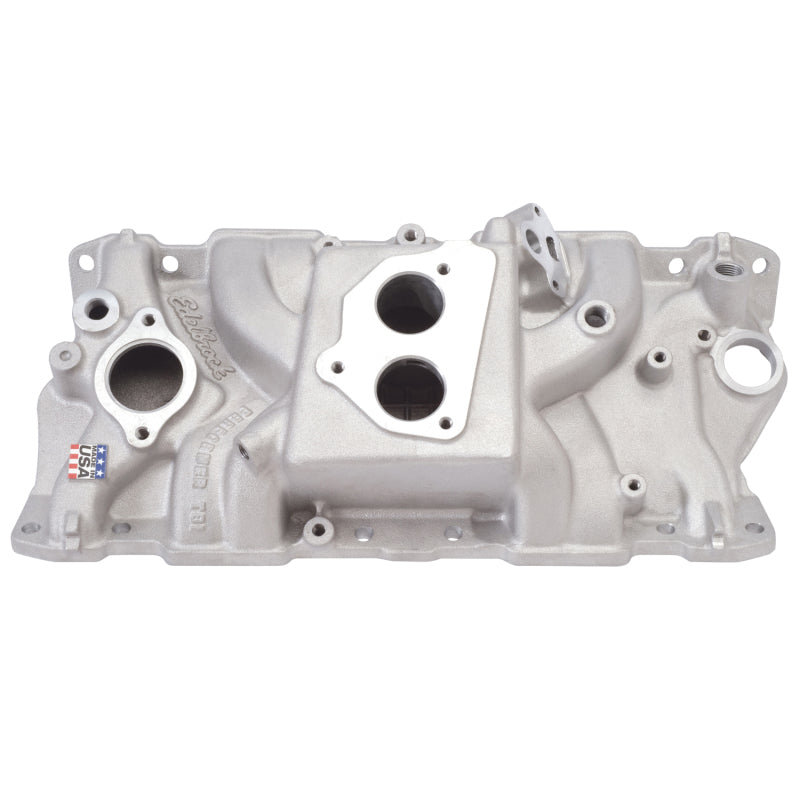

Edelbrock Performer T.B.I. Intake Manifold - Cast

In stock
SKU: EDE3704
Intake Manifold, Performer TBI, Throttle Body Flange, Throttle Body Injection, Aluminum, Natural, Small Block Chevy, Each

Earn [points_amount] when you buy this item.

$445.46
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Designed for 1987-95 305/350 c.i.d. (5.0/5.7L) Chevy throttle body injected (T.B.I.) engines. Number 3704 is a stock replacement/street legal part for 305/350 V8s with factory T.B.I.; 1987-95.

  • 3704, Chevy, Chevrolet, Edelbrock, Intake Manifold, Intake, Manifold, Dual-Plane, Performer, TBI, Satin

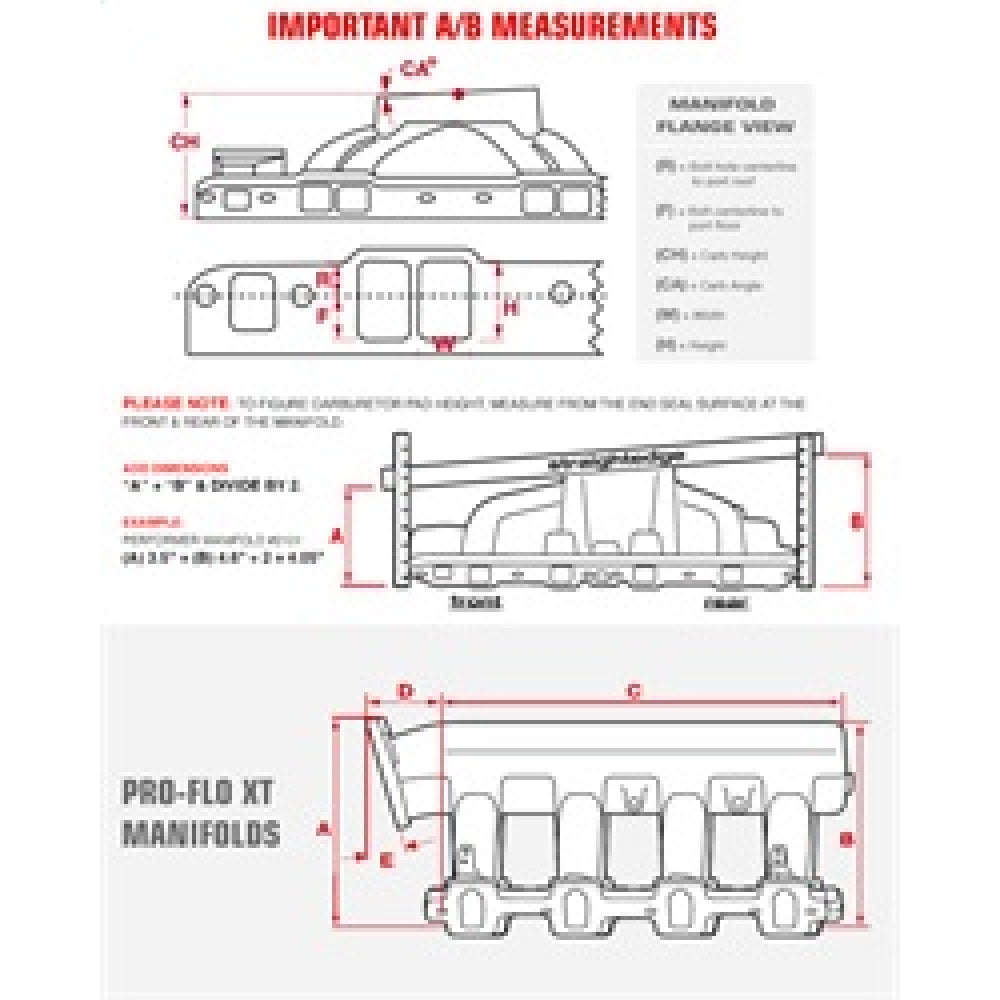

  • Manifold height: A-3.70", B-5.10"
  • TBI pad height: 4.40", .250" taller than stock.
  • Port exit dimensions: 1.13" x 1.87".
  • Made in the USA
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
  • Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Intake Manifold
  • Performer TBI
  • Throttle Body Flange
  • Throttle Body Injection
  • Aluminum
  • Natural
  • Small Block Chevy
  • Sold Individually
    •
