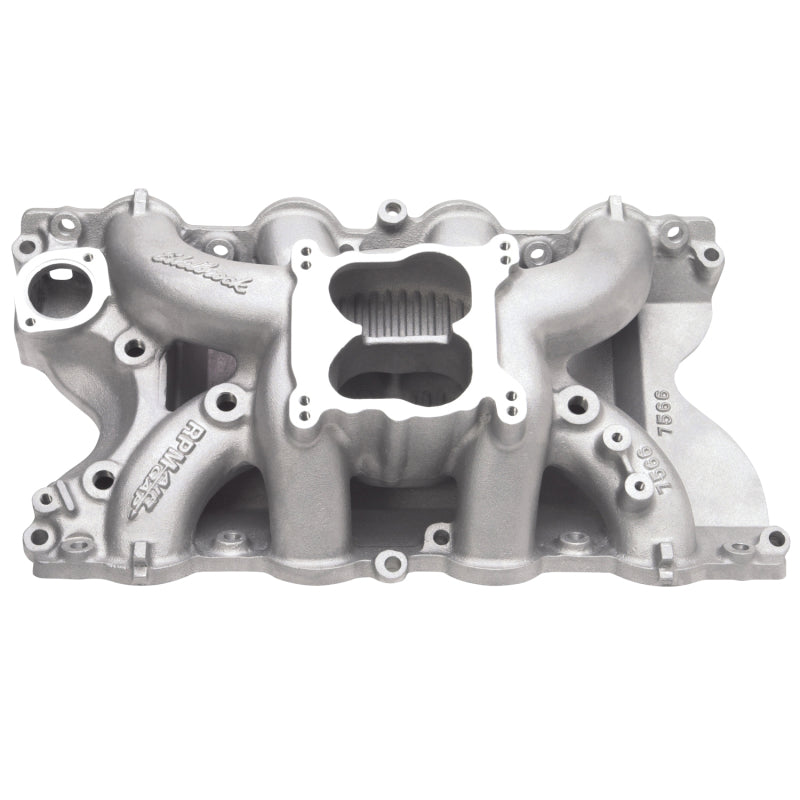

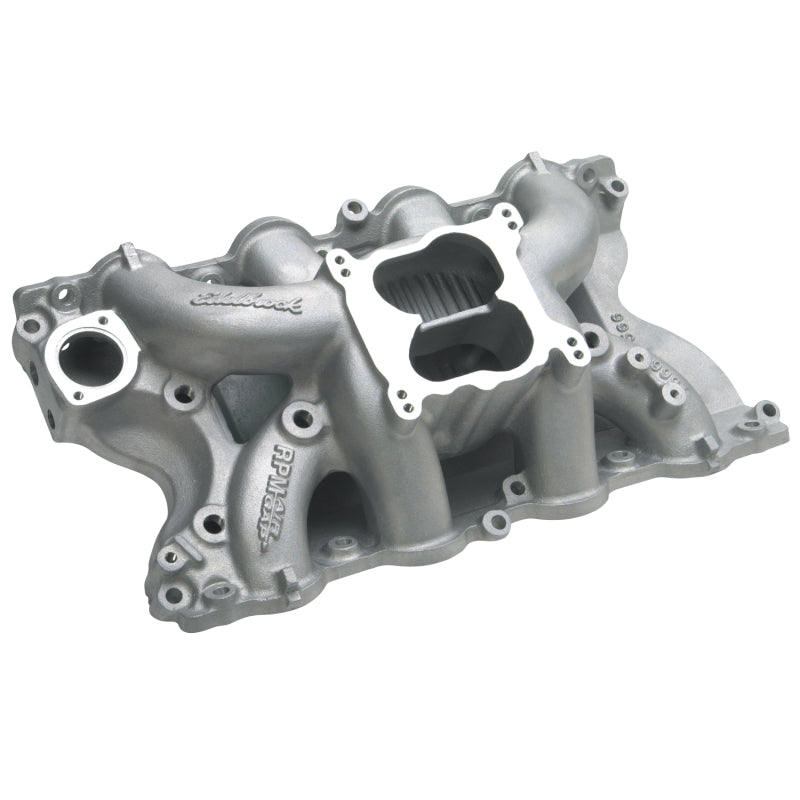

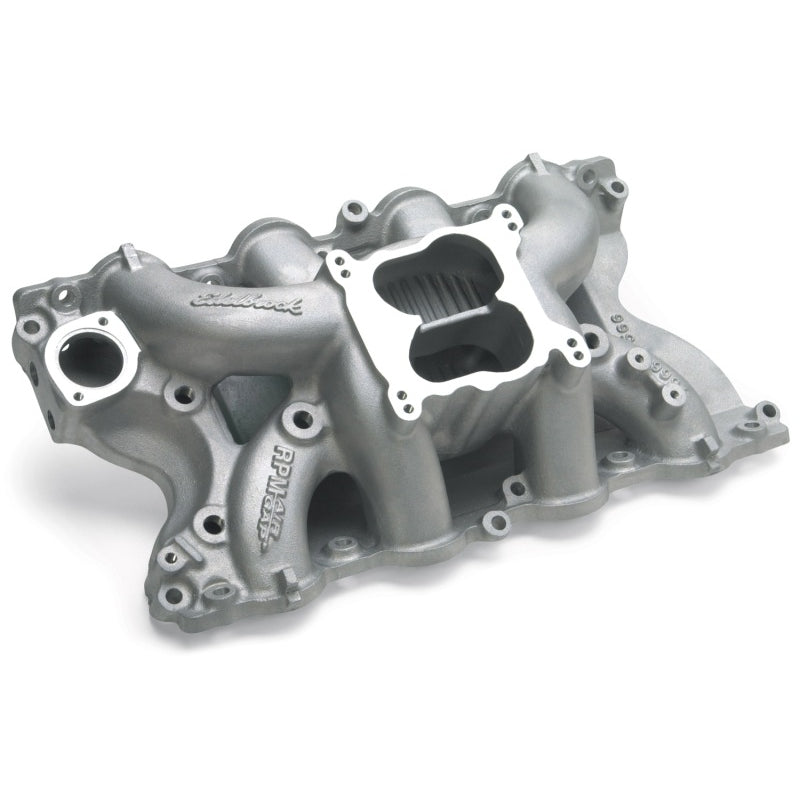

Edelbrock Performer RPM Air-Gap 460 Intake Manifold - Cast

Only 2 left
SKU: EDE7566
Intake Manifold, RPM Air-Gap 460, Square Bore, Dual Plane, Aluminum, Natural, Big Block Ford, Each

Earn [points_amount] when you buy this item.

Regular price $481.46
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Designed for street and high performance 429/460 c.i.d. Ford V8s with standard or Cobra Jet heads, the RPM Air-Gap 460 incorporates the same race-winning design that's been used on our Victor Series competition intakes for decades; The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. It also features a larger cross sectional area than the Performer RPM 460 manifold number 7166 for even more power in high performance and large displacement engines. The carb mount flange accepts both square-bore and spread-bore carbs for Cobra Jet applications. Will not fit 1988 and later models.

  • 7566, Ford, Edelbrock, Intake Manifold, Intake, Manifold, Dual-Plane, Performer RPM, Performer RPM AIR-GAP, Satin

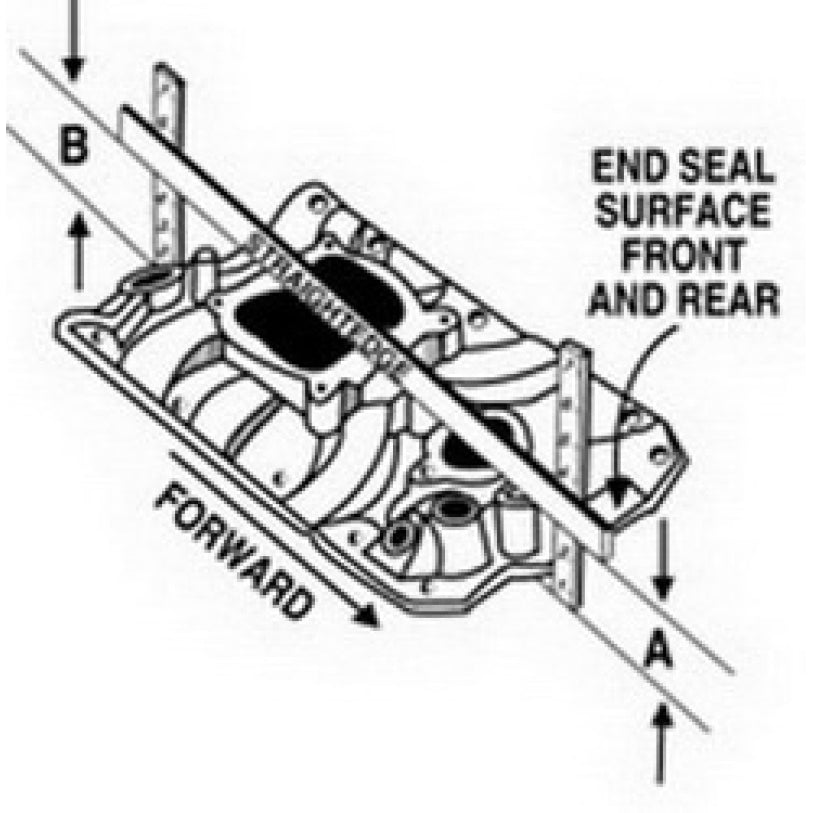

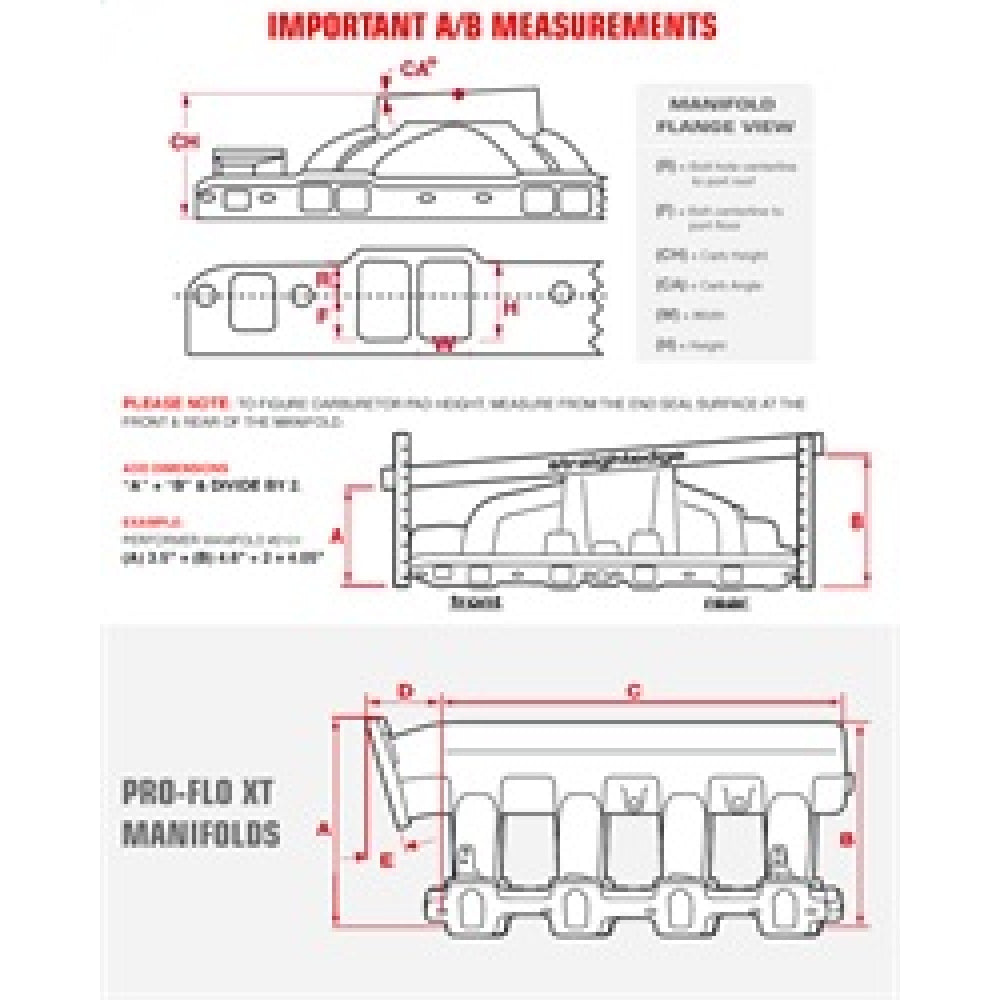

  • Carb pad height: 5.48"
  • Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. For automatic transmissions use #1483 and #1495 or #1844. Port exit dimensions: 1.76" x 2.06"
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Intake Manifold
  • RPM Air-Gap 460
  • Square Bore
  • Dual Plane
  • Aluminum
  • Natural
  • Big Block Ford
  • Sold Individually
