Designed for 1986 and earlier 262-400 cubic-inch Chevys, the Performer EPS dual-plane intake manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. This small-block Chevy manifold has a runner design that's "tuned" for peak torque at 3500 rpm on a 350-inch engine and its ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. From 3000 to 4500 rpm, the increases averaged 5+ ft-lbs. of torque for more performance where you need it most. Performer EPS manifold #2703 combines a modern runner design with a front mounted oil fill tube for those who want the vintage look of our Classic valve covers with no breathers. #2703 has the same performance features as the Performer EPS #2701. Includes Oil Fill Tube (not installed) and matching push-in breather cap. The Oil Fill Tube and Breather are also available separately as #4803. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Also available with choice of four finishes. Will not fit under stock Corvette hood. Available with satin, polished, black or EnduraShine finish

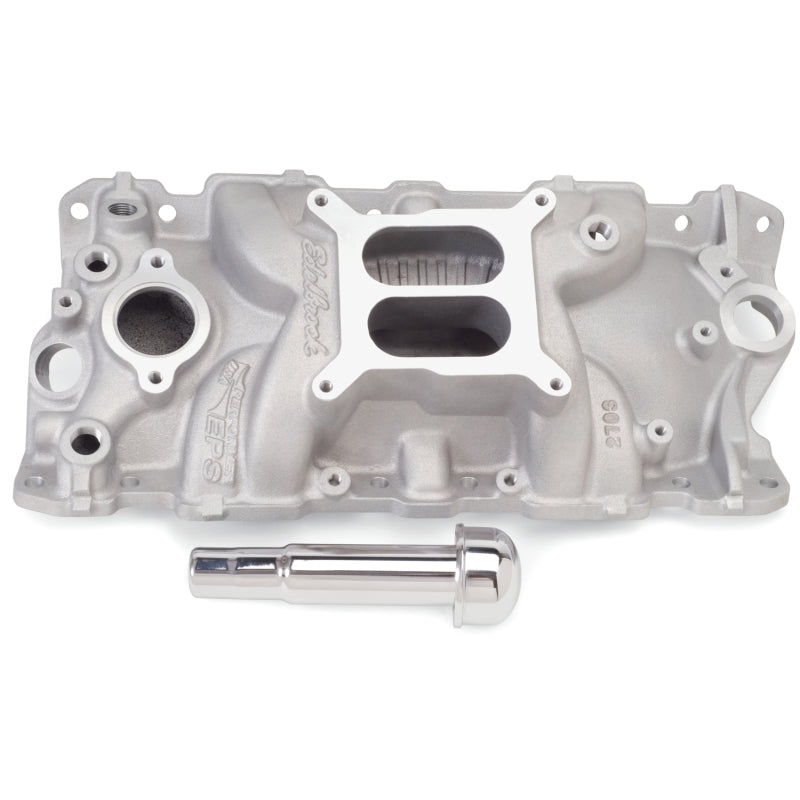

Intake Manifold; Performer EPS with Oil Fill Tube and Breather for Small-Block Chevy Designed for 1986 and earlier 262-400 cubic-inch Chevys, the Performer EPS dual-plane intake manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. This small-block Chevy manifold has a runner design thats "tuned" for peak torque at 3500 rpm on a 350-inch engine and its ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 HP and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. From 3000 to 4500 rpm, the increases averaged 5+ ft-lbs. of torque for more performance where you need it most. Performer EPS manifold #2703 combines a modern runner design with a front mounted oil fill tube for those who want the vintage look of our Classic valve covers with no breathers. #2703 has the same performance features as the Performer EPS #2701. Includes Oil Fill Tube (not installed) and matching push-in breather cap. The Oil Fill Tube and Breather are also available separately as #4803. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Also available with choice of four finishes. Will not fit under stock Corvette hood. Available with satin, polished, black or EnduraShine finish Port exit dimensions: 1.15" x 1.87". Recommended intake gasket: Edelbrock #7201. Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. Will not fit under stock Corvette hood. Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.
Product Descripton:
Intake Manifold Performer EPS Square Bore Dual Plane Aluminum Natural Small Block Chevy Sold Individually
