Edelbrock Head Bolt Bushing w/ Integral Washers
Edelbrock Head Bolt Bushing w/ Integral Washers
Edelbrock Head Bolt Bushing w/ Integral Washers
Edelbrock Head Bolt Bushing w/ Integral Washers
Edelbrock Head Bolt Bushing w/ Integral Washers
Edelbrock Head Bolt Bushing w/ Integral Washers
Edelbrock

Edelbrock Head Bolt Bushing w/ Integral Washers

In stock
SKU: EDE9680

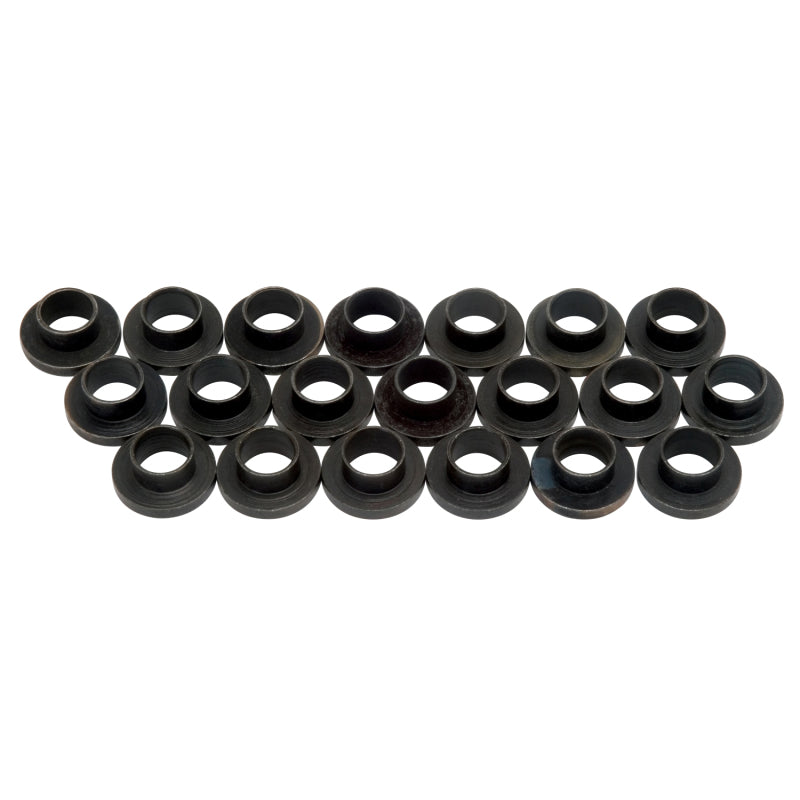

Cylinder Head Bushing, 0.500 in OD, 7/16 in ID, Chromoly, Black Oxide, Head Bolts, Aluminum Head, Small Block Ford, Set of 20

Earn [points_amount] when you buy this item.

$90.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Chromium, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Allows the use of stock or Edelbrock 7/16" head bolts on Edelbrock Cylinder Heads with 1/2" head bolt bosses. Required for 289-302 V8's and 1967-69 AMC.

  • Edelbrock, 289, 302, Ford, V8, Head Bushing, Kit
  • Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75
  • or 30, 60, 90, 100-110).
  • Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary.
  • BOSS 302 CLONE ENGINES - Use Edelbrock Head Bolt Bushings with Integral Washers #9680 in place of washers supplied with your head bolt kit. Torque 7/16" bolts to 65-70 ft./lbs. in four steps (30, 40, 50, 65-70) following the factory tightening sequence. ALL ENGINES - A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling).

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Cylinder Head Bushing
  • 0.500 in OD
  • 7/16 in ID
  • Chromoly
  • Black Oxide
  • Head Bolts
  • Aluminum Head
  • Small Block Ford
  • Set of 20
    •
