Designed for street 1955-86 small-block Chevys. Performers accept late-model choke, water neck, air-conditioning, alternator and H.E.I. Has provisions to add oil fill tube. Not for 1987 and later cast iron or Chevy Bowtie heads. Will fit 1987 and later stock aluminum heads.
3701, Chevy, Chevrolet, Edelbrock, Intake Manifold, Intake, Manifold, Dual-Plane, Performer, Satin Carb recommendations: OEM 4-Bbl, use choke rod #9171. Edelbrock AVS2 or Performer Series 500-650 cfm. Use bracket #8031 or #8036 for 1972-78 Port exit dimensions: 1.14" x 1.88" Recommended intake gasket: Edelbrock #7201. Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. Edelbrock Choke plate #8901 included. See Edelbrock adapter #8035 for clamp-on EGR valve. With Edelbrock carb #1400 & #3701, EGR spacer #1476 is required. Edelbrock #1476 is required with #3701 on center bolt heads with 1986 & earlier bolt pattern. Edelbrock choke plate #8901 included. Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.
Product Descripton:

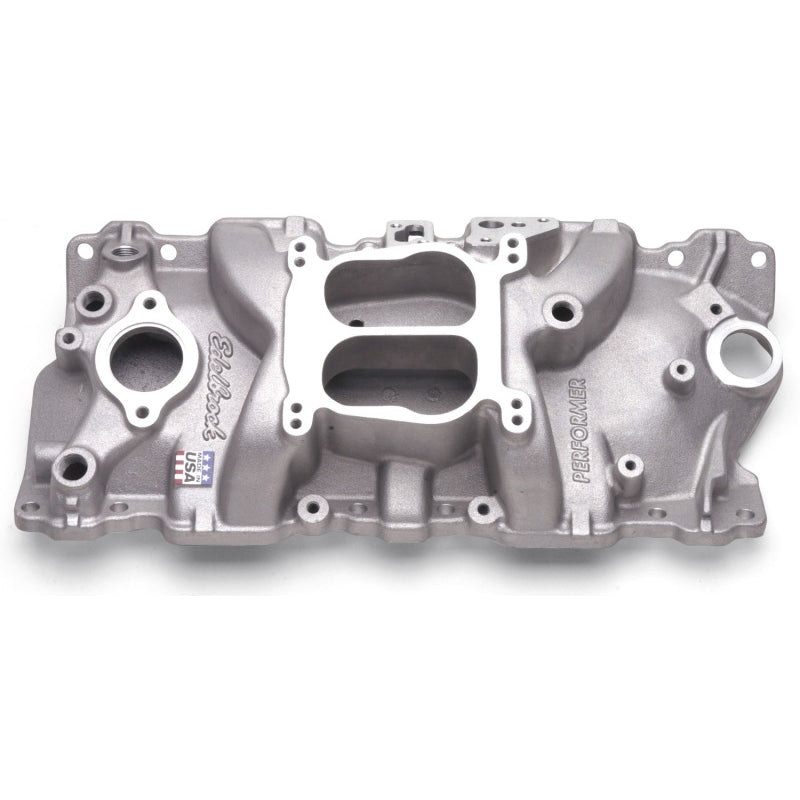

Intake Manifold Spread / Square Bore Dual Plane Aluminum Natural Small Block Chevy Sold Individually
