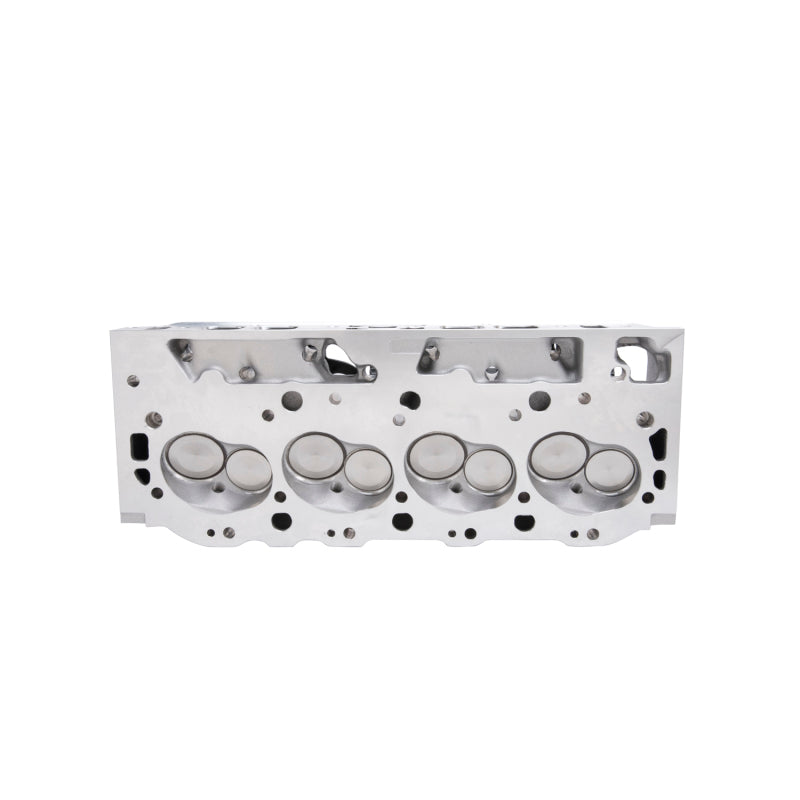

Edelbrock BB Chevy Performer RPM 454-O Cylinder Head - Assembled

Only 4 left
SKU: EDE60455
Cylinder Head, Performer RPM, Assembled, 2.190 / 1.880 in Valve, 290 cc Intake, 110 cc Chamber, 1.550 in Springs, Aluminum, Big Block Chevy, Each

Earn [points_amount] when you buy this item.

$1,223.50
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Cylinder Head Specifications: Combustion chamber volume: 110cc; Intake runner volume: 290cc; Exhaust runner volume: 110cc; Intake valve diameter: 2.19"; Exhaust valve diameter: 1.88"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.55"; Valve spring maximum lift: .700"; Rocker stud: 7/16"; Guideplate: Hardened steel; Pushrod diameter: 3/8"; Valve angle: 26 °; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.

  • Edelbrock, BBC, Big Block Chevy,454, 396, 402, V8, Cylinder Heads, 60455, Flat Tappet
  • Unique oval intake port shape produces flow similar to rectangular ports, but the smaller port size provides excellent seat-of-the-pants performance and crisp throttle response
  • Semi-open chamber design maximizes efficiency with streetable compression ratios
  • Smaller-than-stock 11/32" valve stems promote excellent flow and lighter valve weight

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Cylinder Head
  • Performer RPM
  • Assembled
  • 2.190 / 1.880 in Valve
  • 290 cc Intake
  • 110 cc Chamber
  • 1.550 in Springs
  • Aluminum
  • Big Block Chevy
  • Sold Individually
    •
