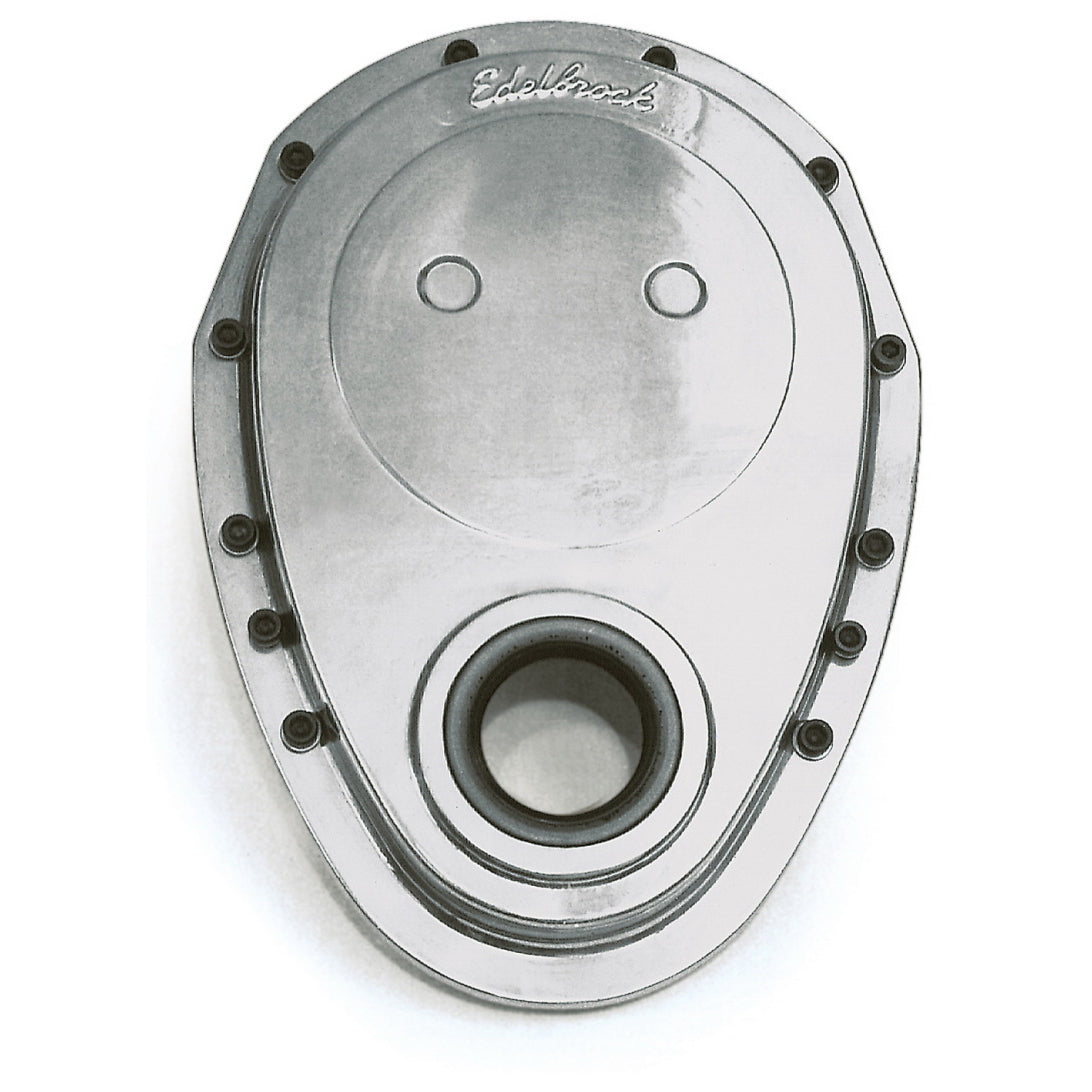

Edelbrock Aluminum Timing Cover - Small-Block Chevrolet - Compatible w/ Short Thrust Buttons (.640").
Edelbrock Aluminum Timing Cover - Small-Block Chevrolet - Compatible w/ Short Thrust Buttons (.640").
Edelbrock

Edelbrock Aluminum Timing Cover - Small-Block Chevrolet - Compatible w/ Short Thrust Buttons (.640").

In stock
SKU: EDE4240
Timing Cover, 1-Piece, Gaskets / Hardware / Seal / Timing Tab Included, Aluminum, Polished, Small Block Chevy / GM V6, Kit

Earn [points_amount] when you buy this item.

$78.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Small-Block & Big-Block Chevy: Our die-cast polished timing covers for Chevrolet come with pan seal, allen head bolts, gaskets, washers, and timing marker. #4240 wont fit 1987 & later; #4241 wont fit 1991 and later big-block Gen V & VI engines.

  • Timing Cover, Edelbrock, Valvetrain, Edelbrock Timing Covers, Aluminum Timing Cover, SBC, Chevy Timing Cover, 4240
  • Disconnect radiator hose and heater hose from the timing cover
  • Remove the drive belt and harmonic dampener using a special dampener puller. NOTE: On some vehicles, it is necessary to remove radiator and fan assembly to gain access to the harmonic dampener
  • Disconnect fuel line from the mechanical fuel pump. Remove two bolts securing fuel pump and remove pump. NOTE: Place rag over fuel line and pump to avoid excess fuel spillage
  • Remove four (4) oil pan bolts attached to the timing cover
  • Remove eleven (11) bolts securing the water pump to the timing cover
  • Remove four (4) bolts holding stock timing cover to block
  • Place a rag over the oil pan opening to prevent debris from falling into oil pan. Carefully scrape all gasket surfaces on face of block and oil pan surface to remove old gasket and residue

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Timing Cover
  • 1-Piece
  • Gaskets / Hardware / Seal / Timing Tab Included
  • Aluminum
  • Polished
  • Small Block Chevy / GM V6
    •
