Home » Edelbrock 5-10 psi Fuel Pressure Regulator Inline 10 An Inlets/Outlet 6 AN Return - Bypass - Blue Anodize

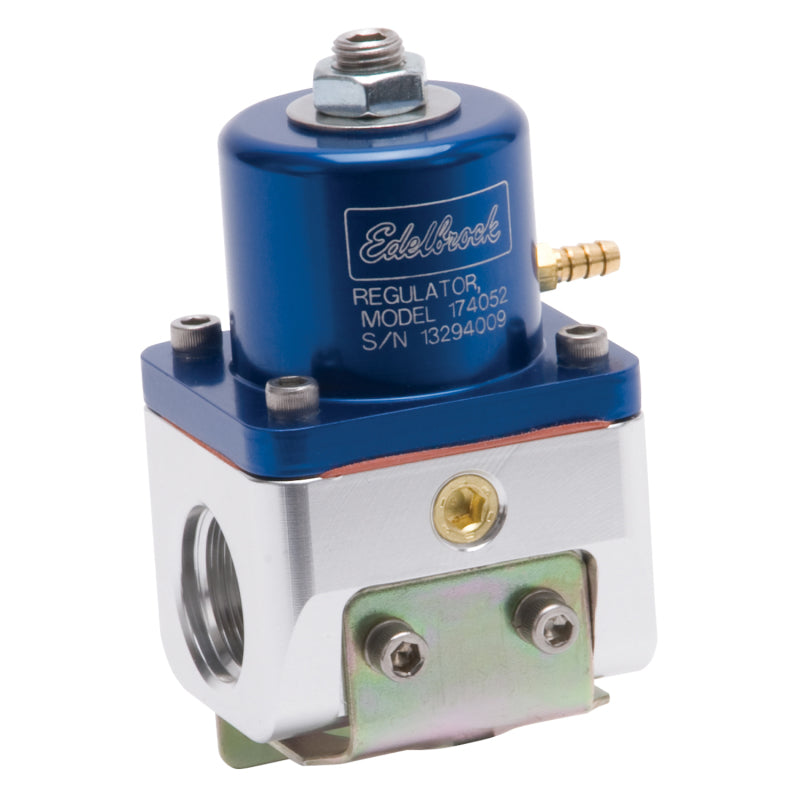

Edelbrock 5-10 psi Fuel Pressure Regulator Inline 10 An Inlets/Outlet 6 AN Return - Bypass - Blue Anodize
Edelbrock 5-10 psi Fuel Pressure Regulator Inline 10 An Inlets/Outlet 6 AN Return - Bypass - Blue Anodize
Edelbrock

Edelbrock 5-10 psi Fuel Pressure Regulator Inline 10 An Inlets/Outlet 6 AN Return - Bypass - Blue Anodize

Only 1 left
SKU: EDE174052
Fuel Pressure Regulator, 5 to 10 psi, In-Line, 10 AN Female O-Ring Inlets, 10 AN Female O-Ring Outlet, 6 AN Female O-Ring Return, Bypass, 1/8 in NPT Port, Aluminum, Blue / Clear Anodized, E85 / Gas / Methanol, Each

Earn [points_amount] when you buy this item.

$149.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Chromium, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

These fuel pressure regulators are machined from aircraft quality aluminum for those who demand the best. These carbureted fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Select regulators available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost). Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps.

  • 174052, Edelbrock, fuel pressure, Fuel pressure regulator, Regulator, Carburetor, Carb, pressure, adjustable, boost port, Vac port, vacuum port, gauge port, return port, bypass-style, 180 GPH

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Fuel Pressure Regulator
  • 5 to 10 psi
  • In-Line
  • 10 AN Female O-Ring Inlets
  • 10 AN Female O-Ring Outlet
  • 6 AN Female O-Ring Return
  • Bypass
  • 1/8 in NPT Port
  • Aluminum
  • Blue / Clear Anodized
  • E85 / Gas / Methanol
  • Sold Individually
    •
