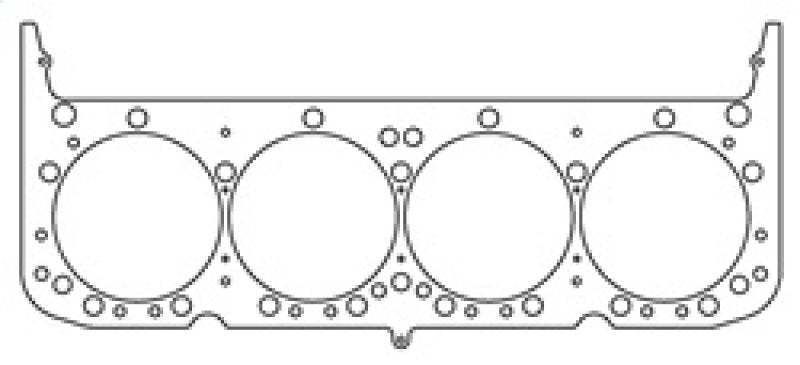

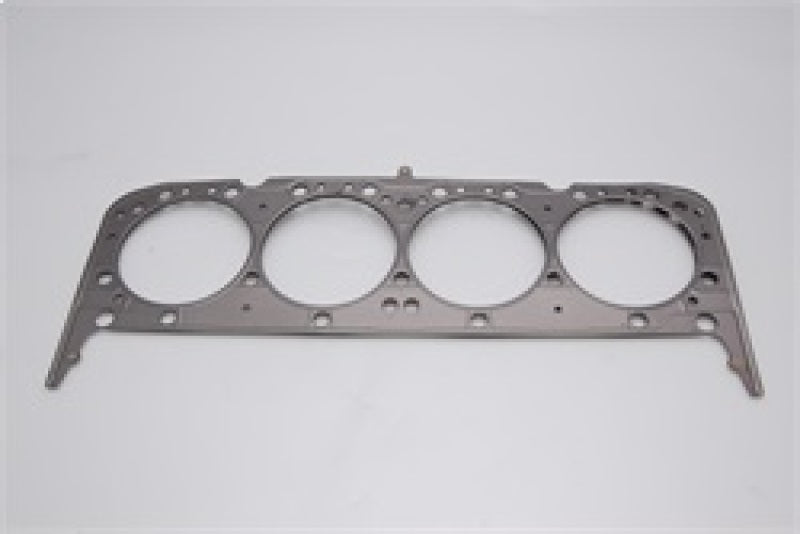

Cometic 4.125" MLS Head Gasket (Each) - .040" Thickness - SB Chevy 262-400 18/23 w/ Steam Holes

In stock
SKU: CAGC5247-040
Cylinder Head Gasket, 4.125 in Bore, 0.040 in Compression Thickness, Multi-Layer Steel, Small Block Chevy, Each

Earn [points_amount] when you buy this item.

Regular price $87.95
Regular price Sale $97.72 Sale price $87.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: These products may contain a chemical known to the state of California to cause cancer and birth defects or other reproductive harm

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". With Steam Holes. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

Vehicle Applications:

  • 1967-1974 GMC G15/G1500 Van
  • 1978-1986 Oldsmobile Cutlass
  • 1969-1974 Checker Taxicab
  • 1955-1986 Chevrolet Corvette
  • 1978-1980 Oldsmobile Cutlass Salon
  • 1977-1986 Buick Regal
  • 1975-1978 GMC K25 Suburban
  • 1955-1959 GMC FM340
  • 1955-1955 GMC 100-22
  • 1967-1986 Chevrolet C10 Suburban
  • 1979-1986 GMC C2500 Suburban
  • 1966-1974 Checker Aerobus
  • 1970-1974 GMC G35/G3500 Van
  • 1959-1986 Pontiac Parisienne
  • 1969-1974 Chevrolet Blazer
  • 1955-1959 GMC PM250
  • 1975-1978 GMC C15
  • 1959-1986 Chevrolet El Camino
  • 1969-1970 Checker Deluxe
  • 1967-1974 GMC G25/G2500 Van
  • 1979-1986 GMC K2500 Suburban
  • 1967-1974 GMC K15/K1500 Suburban
  • 1975-1978 GMC G15
  • 1955-1959 GMC F370
  • 1955-1960 GMC Truck
  • 1967-1974 GMC K25/K2500 Suburban
  • 1955-1959 GMC FM350
  • 1964-1971 Pontiac Acadian
  • 1967-1986 Chevrolet K20 Suburban
  • 1960-1963 GMC 2500 Series
  • 1955-1958 Chevrolet Sedan Delivery
  • 1955-1959 GMC F350
  • 1960-1963 GMC 1500 Series
  • 1967-1974 GMC C25/C2500 Pickup
  • 1972-1986 Pontiac Bonneville
  • 1975-1986 Chevrolet K5 Blazer
  • 1975-1981 Pontiac Catalina
  • 1975-1983 Pontiac Grand LeMans
  • 1955-1955 GMC 150-22
  • 1977-1981 Buick Century
  • 1959-1972 Chevrolet Kingswood
  • 1975-1986 Chevrolet C30
  • 1955-1958 Pontiac Pathfinder
  • 1960-1974 Chevrolet C10 Pickup
  • 1956-1959 GMC PM251
  • 1968-1974 Chevrolet K30 Pickup
  • 1978-1986 Oldsmobile Cutlass Supreme
  • 1958-1972 Chevrolet Brookwood
  • 1965-1980 Avanti II
  • 1978-1979 Pontiac Sunbird
  • 1979-1986 GMC K1500 Suburban
  • 1975-1978 GMC G25
  • 1979-1986 GMC C1500
  • 1980-1983 Oldsmobile Cutlass Cruiser
  • 1955-1959 GMC 300
  • 1977-1979 Pontiac Phoenix
  • 1979-1986 GMC C2500
  • 1975-1986 Chevrolet K10
  • 1967-1974 Chevrolet G20 Van
  • 1969-1970 Chevrolet Estate
  • 1975-1978 GMC K25
  • 1955-1955 GMC 250-22
  • 1975-1978 GMC C15 Suburban
  • 1958-1958 Chevrolet Yeoman
  • 1977-1979 Oldsmobile Omega
  • 1967-1967 Chevrolet K20 Panel
  • 1967-1974 GMC K25/K2500 Pickup
  • 1969-1979 Chevrolet Nova
  • 1964-1967 Gordon-Keeble IT
  • 1955-1959 GMC 250
  • 1960-1974 Chevrolet K10 Pickup
  • 1958-1985 Chevrolet Impala
  • 1979-1986 GMC G3500
  • 1959-1959 Chevrolet 3D
  • 1970-1974 Chevrolet G30 Van
  • 1955-1959 GMC 350-8
  • 1979-1986 GMC K3500
  • 1975-1986 Chevrolet G10
  • 1960-1965 GMC Suburban
  • 1975-1986 Chevrolet C20
  • 1968-1974 Chevrolet G10 Van
  • 1955-1966 Chevrolet Suburban
  • 1977-1978 GMC K35
  • 1955-1981 Chevrolet Bel Air
  • 1967-1974 GMC C25/C2500 Suburban
  • 1955-1959 GMC M300
  • 1967-1974 GMC K15/K1500 Pickup
  • 1960-1966 GMC 3500
  • 1975-1977 Oldsmobile Custom Cruiser
  • 1977-1986 Chevrolet K30
  • 1978-1984 Oldsmobile Cutlass Calais
  • 1959-1959 Chevrolet 3B
  • 1960-1974 Chevrolet C30 Pickup
  • 1967-1974 GMC C35/C3500 Pickup
  • 1960-1974 Chevrolet C20 Pickup
  • 1955-1960 Chevrolet Truck
  • 1969-1972 Chevrolet Townsman
  • 1979-1986 GMC G1500
  • 1986-1986 Excalibur Phaeton
  • 1955-1959 GMC 150
  • 1955-1959 GMC S370
  • 1975-1978 GMC G35
  • 1975-1982 Oldsmobile Delta 88
  • 1958-1972 Chevrolet Biscayne
  • 1972-1972 Pontiac Grand Safari
  • 1975-1978 GMC K15 Suburban
  • 1955-1959 GMC PM150
  • 1979-1986 GMC C3500
  • 1977-1979 Buick Skylark
  • 1979-1986 GMC C1500 Suburban
  • 1975-1979 Chevrolet Monza
  • 1967-1986 Chevrolet C20 Suburban
  • 1971-1977 GMC Sprint
  • 1956-1959 GMC PM151
  • 1975-1978 GMC C25 Suburban
  • 1968-1974 GMC K35/K3500 Pickup
  • 1975-1986 Chevrolet G20
  • 1959-1959 Chevrolet 3F
  • 1967-1986 Chevrolet Camaro
  • 1955-1959 GMC S300
  • 1979-1986 GMC K2500
  • 1967-1986 Chevrolet K10 Suburban
  • 1960-1974 Chevrolet K20 Pickup
  • 1972-1975 Pontiac Grandville
  • 1963-1968 Chevrolet Chevy II
  • 1967-1974 GMC C15/C1500 Pickup
  • 1975-1980 Pontiac Grand Am
  • 1979-1986 GMC G2500
  • 1955-1957 Chevrolet Two-Ten Series
  • 1964-1967 Gordon-Keeble GK1
  • 1978-1982 Buick LeSabre
  • 1975-1978 GMC C25
  • 1958-1970 Pontiac Strato-Chief
  • 1978-1986 GMC Caballero
  • 1957-1959 GMC PM153
  • 1955-1959 GMC 370
  • 1955-1957 Chevrolet One-Fifty Series
  • 1979-1986 GMC K1500
  • 1975-1986 Chevrolet K20
  • 1975-1978 GMC K15
  • 1958-1958 GMC PM253
  • 1964-1983 Chevrolet Malibu
  • 1958-1958 GMC PM252
  • 1975-1986 Pontiac Grand Prix
  • 1960-1963 GMC 1000 Series
  • 1970-1986 GMC Jimmy
  • 1959-1959 Chevrolet 3E
  • 1975-1986 Chevrolet C10
  • 1970-1986 Chevrolet Monte Carlo
  • 1970-1971 Stutz Blackhawk
  • 1959-1961 Chevrolet Parkwood
  • 1955-1981 Pontiac Laurentian
  • 1959-1959 Chevrolet 3G
  • 1977-1979 Oldsmobile Starfire
  • 1959-1959 Chevrolet 3C
  • 1965-1982 Checker Marathon
  • 1964-1969 Pontiac Beaumont
  • 1957-1958 Chevrolet Del Ray
  • 1955-1955 GMC 280-22
  • 1955-1956 GMC M340
  • 1973-1976 Chevrolet Laguna
  • 1975-1986 Chevrolet G30
  • 1972-1986 Pontiac Firebird
  • 1975-1978 GMC C35
  • 1966-1986 Chevrolet Caprice
  • 1967-1974 GMC C15/C1500 Suburban
  • 1975-1981 Pontiac LeMans
  • 1955-1961 Chevrolet Nomad
  • 1964-1973 Chevrolet Chevelle
  • 1971-1977 Pontiac Ventura
  • 1960-1962 Chevrolet C40
  • 1955-1959 GMC 100
  • 1957-1959 GMC PM152
  • 1960-1966 GMC 3000
  • Cometic is dedicated to customer satisfaction and provides quality products, delivered on time at a competitive price, designed for each customer's specific application. Cometic is an industry leader in manufacturing processes and committed to pairing the highest possible quality materials with knowledgeable personnel. Cometic is also dedicated to continually improving all areas of its operations through employee development and involvement, as well as continual and comprehensive reviews of customer feedback. To ensure superior performance across a wide variety of engine types and sizes, Cometic manufactures gaskets from a comprehensive range of materials. Whether the situation calls for the latest in advanced technology like the MLS (Multi-Layer Steel) Gasket, or a synthetic blend such as Aramid Fiber, Cometic finds a solution. Cometic stays on the forefront of gasket design technology by utilizing in-house dynamometers and engine assembly rooms to bring its distributors, retailers and ultimately the end-user, the most reliable gaskets available today. Cometic combines advanced materials with the most current manufacturing processes to provide custom-tailored solutions to meet the needs of each individual customer. Engineers analyze the environment in which the gasket will perform, select the proper material, and apply the appropriate technology to offer the best-performing gaskets available in today's ever-changing marketplace. Cometic gaskets are the industry standard for championship-winning teams across multiple disciplines of both professional and amateur motorsports.

  • .040" MLS Cylinder Head Gasket, 4.125" Round Gasket Bore
  • Cylinder Head Gasket; 0.040 in. Multi-Layer Steel; 4.125 in. Bore; w/Steam Holes;

    Since 1989, Cometic Gasket has grown into a leading worldwide supplier of custom and short-run gaskets for the motorsports industry. Cometic Gasket supplies hi-performance gaskets for a variety of motorsports markets. Today, Cometic produces and ships more than 5,000 types of gaskets. Since its inception, Cometic Gasket has been committed to producing superior quality gaskets for the hi-performance motorsports market. To ensure superior performance across a wide variety of engine types and sizes, Cometic gaskets are manufactured from a wide range of materials.

    Product Descripton:

  • Cylinder Head Gasket
  • 4.125 in Bore
  • 0.040 in Compression Thickness
  • Multi-Layer Steel
  • Small Block Chevy
  • Sold Individually
