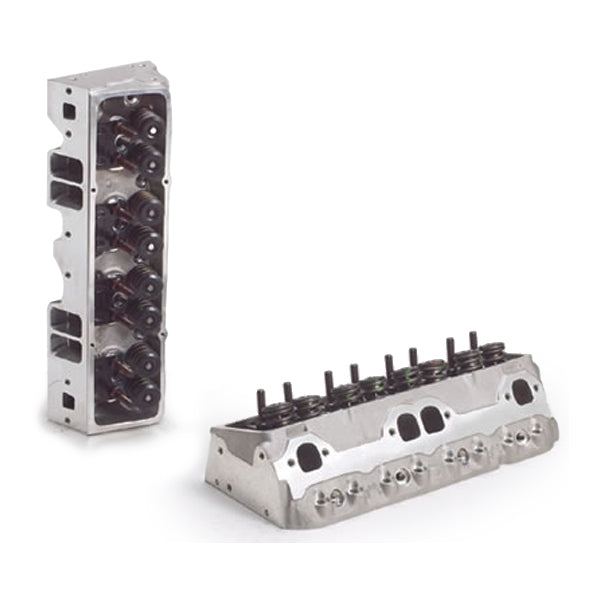

Brodix Track 1® Aluminum Cylinder Heads - Assembled - SB Chevy 327, 350, 400 (Pair) - 67cc Chamber, 221cc Intake Runner - 2.080" Intake, 1.600" Exhaust Valve

Only 2 left
SKU: BRO1001001
Cylinder Head, Track 1, Assembled, 2.080 / 1.600 in Valves, 221 cc Intake, 67 cc Chamber, 1.550 in Springs, Angle Plug, Aluminum, Small Block Chevy, Pair

Earn [points_amount] when you buy this item.

Regular price $2,043.71
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: These products may contain a chemical known to the state of California to cause cancer and birth defects or other reproductive harm

The Track 1 has a 215 cc intake port and a 67 cc combustion chamber. This head was designed for the person who wants a cylinder head that could be bolted on a Bracket Drag Car or weekend Oval Track Car and make a significant difference in horsepower and lose weight at the same time. The Track 1 is available in standard exhaust ports only. The Track 1 is compatible with nitrous and has a very thick deck. Valve seats and phosphorous bronze guides are installed. Do not cut the spring pockets any larger than 1. 550!

FACTS and RELATED COMPONENTS:

  • Torque Head: 70 ft. lb.
  • Rocker Studs: 40-45 ft. lb.
  • Combustion Chambers: 67 cc
  • Intake Port Volume: 215 cc
  • Intake Port Dimensions: 1. 340 X 2. 210 FEL-PRO, FP 1206
  • Intake Valve Size: 2. 080
  • Exhaust Valve Size: 1. 600
  • Head Gasket: 350 FEL-PRO, FP 1003, 400 FP 1004
  • Head Bolts & Studs: MANLEY, MA 42313, AR 234-4301
  • Head Bolt Washers: MANLEY, MA 42102
  • Exhaust Gasket: FEL-PRO, FP 1406
  • Most Common Intake Manifold: HV 1000
  • Accessory Bolt Holes Are Drilled
  • Spark Plug Starting Points: AUTOLITE, 51 FOR ALCOHOL/ 52 FOR GAS
  • Spring Pockets: MAY NOT BE CUT ANY LARGER OR DEEPER THAN 1. 550
  • Standard Intake Valve Seat: P 2. 131 5/16
  • Standard Exhaust Valve Seat: P 1. 650 3/8
  • Standard Valve Guide: SH 545 11/32 P
  • Valve Angle: 23?
  • Angle Milling: . 0078 in. PER cc
  • Flat Milling: . 0060 in. PER cc
  • Valve Spacing: STANDARD
  • Angle Machining: NOT STANDARD
  • Dowel Shift: NOT STANDARD
  • Pushrod Slots: STANDARD
  • Stud Girdle: STANDARD
  • Rocker Arms: STANDARD

    STANDARD PACKAGE COMPONENTS:

  • PS CB: VALVE BOWLS BLENDED PS MI: MATCH INTAKE PORT TO FEL-PRO, FP 1206 PS
  • Valve Job: COMPETITION 3 ANGLE VALVE JOB
  • Intake Valve: 2. 080 X 4. 965, BR 81019
  • Exhaust Valve: 1. 600 X 4. 965, BR 81021
  • Valve Springs: 1. 550 ROLLER VALVE SPRING, 200-220 lb. ON SEAT, 700 MAXIMUM LIFT
  • Retainers: 1. 550 10? STEEL, CC 752
  • Valve Locks: 10? JUMBO, CC 611
  • Rocker Studs: 7/16, BR 716S
  • Guide Plates: 5/16, CC 4808
  • Valve Seals: 11/32, UN 165

    It remains the foremost goal of BRODIX Inc. to develop the highest quality, most innovative and dependable products. The ability to make close tolerance, high strength castings has been the benchmark of BRODIX.

    Product Descripton:

  • Cylinder Head
  • Track 1
  • Assembled
  • 2.080 / 1.600 in Valves
  • 221 cc Intake
  • 67 cc Chamber
  • 1.550 in Springs
  • Angle Plug
  • Aluminum
  • Small Block Chevy
  • Pair
