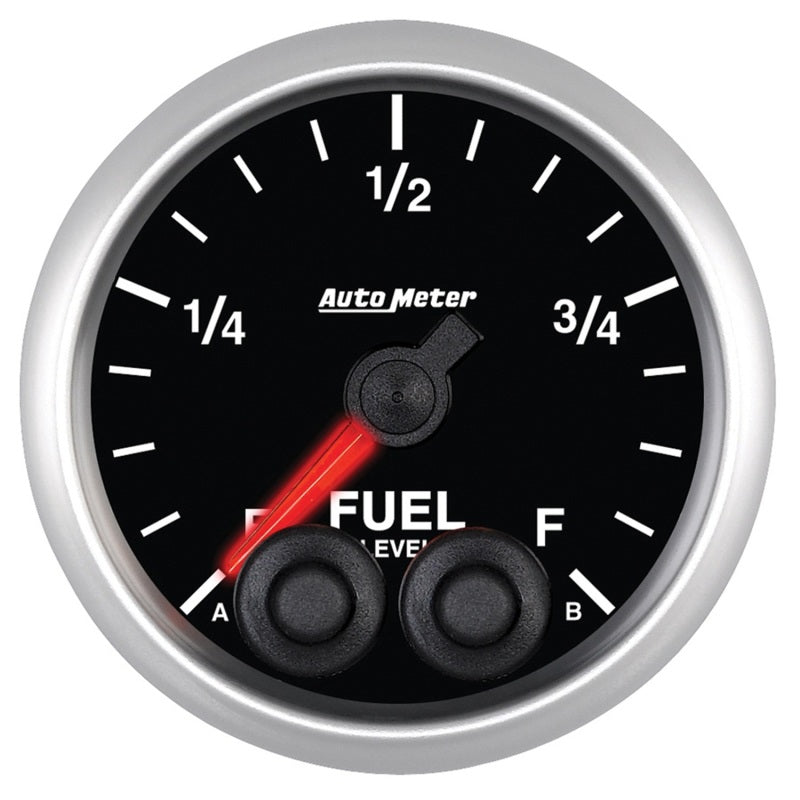

Auto Meter Elite Series Programmable Fuel Level Gauge - 2-1/16 in.

In stock
SKU: ATM5609
Fuel Level Gauge, Elite-Series, 0-280 ohm, Electric, Analog, Full Sweep, 2-1/16 in Diameter, Programmable, Black Face, Each

Earn [points_amount] when you buy this item.

Regular price $199.97
Regular price Sale $222.14 Sale price $199.97
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: These products may contain a chemical known to the state of California to cause cancer

Traditionally, paring the proper fuel level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our ?snapshot? programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.

7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions

  • Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
  • Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
  • User definable resistance setting programmable anywhere between 0-280 ohms
  • Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
  • Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
  • Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up

    Auto Meter Gauges are the number one choice of professional racers worldwide. Auto Meter, the most respected manufacturer of high quality, performance aftermarket instrumentation, tachometers, gauges, gauge pods, and test equipment.

    Product Descripton:

  • Fuel Level Gauge
  • Elite-Series
  • 0-280 ohm
  • Electric
  • Analog
  • Full Sweep
  • 2-1/16 in Diameter
  • Programmable
  • Black Face
  • Sold Individually
