Auto Meter Braided Stainless Steel Line Kit - 3 Ft. #4 - 3/16" I.D. Fittings

Only 3 left
SKU: ATM3227
Gauge Line Kit, 4 AN, 3 ft, 4 AN Female to 4 AN Female, Fittings Included, Braided Stainless, Mechanical Pressure Gauges, Kit

Earn [points_amount] when you buy this item.

$62.97
Sale $69.30 $62.97
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: These products may contain a chemical known to the state of California to cause cancer

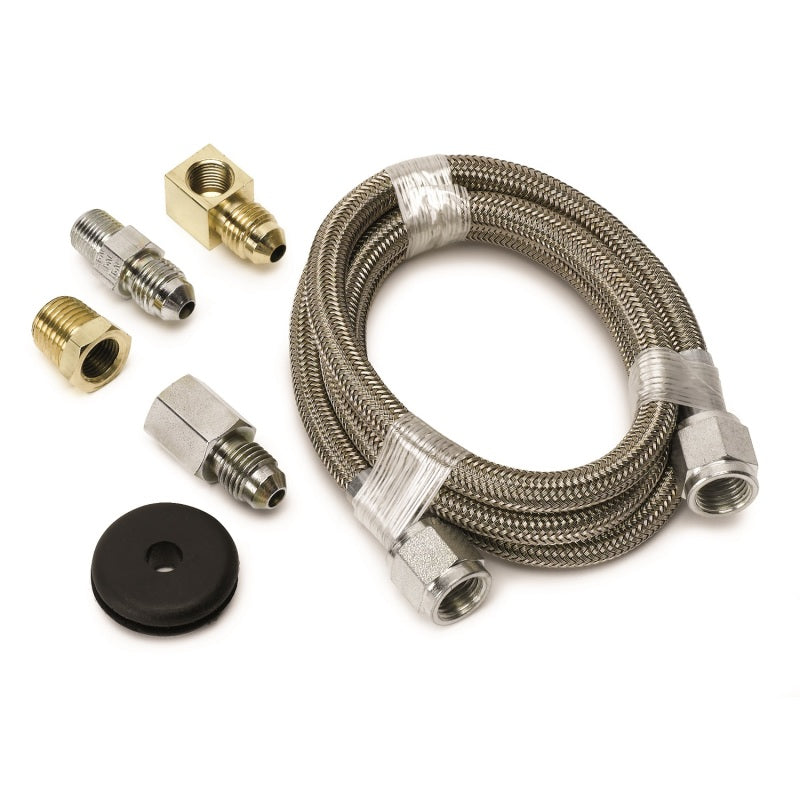

Includes 3ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

3ft hose length

  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
  • Maximum Operating Pressure - 3000 PSI
  • Burst Pressure - 12,000 PSI
  • -65 Degrees F to 450 Degrees F Operating Temperature Range
  • Includes 1/8" NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings

    Auto Meter Gauges are the number one choice of professional racers worldwide. Auto Meter, the most respected manufacturer of high quality, performance aftermarket instrumentation, tachometers, gauges, gauge pods, and test equipment.

    Product Descripton:

  • Gauge Line Kit
  • 4 AN
  • 3 ft
  • 4 AN Female to 4 AN Female
  • Fittings Included
  • Braided Stainless
  • Mechanical Pressure Gauges
    •
