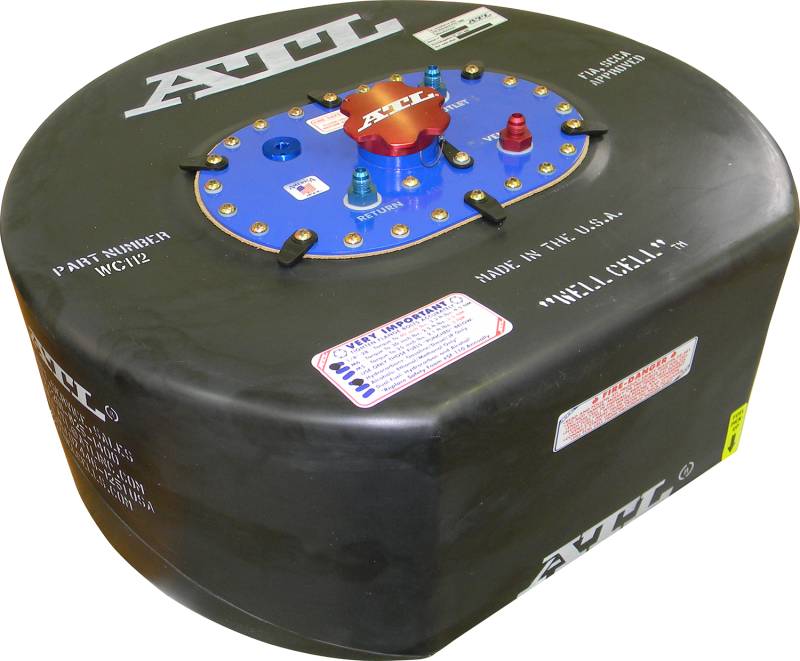

ATL Well Cell Series Fuel Cell - 12 Gallon - 22" Diameter x 9.0" Height - FIA FT3

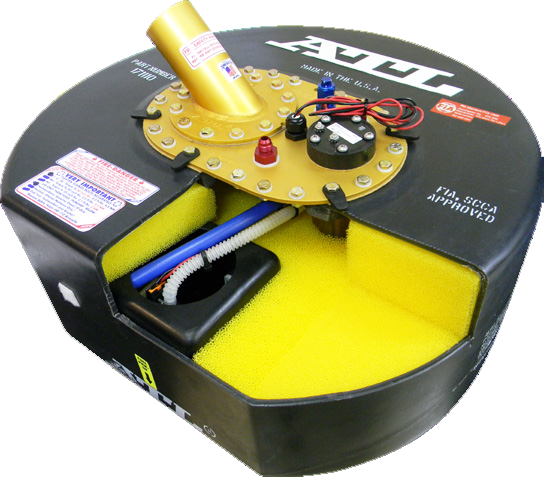

The ATL Well Cell Is Designed To Fit Conveniently In The Spare Tire Well Of Most Vehicles. The Rugged, Crashworthy FIA FT3 Approved Hard-Rubber Molded Fuel Bladder Is ALL-FUEL Compatible And Comes Fully Assembled With Composite Nut-Ring, SF103 Safety Foam Baffling, Duck-Foot Pick-Up And Powder Coated Steel Fill Plate With Billet Aluminum Twist Cap.
FILL PLATE
Powder Coated Steel Fill Plate Featuring Billet Aluminum Twist Cap with Flap-Type Roll-Over Valve, #6 Outlet Bulkhead Fitting, #6 Vent-Check Roll-Over Valve, and #6 Return.
FUEL PICK-UP
One Duck-Foot Pick-Up With Fuel Trap and Filter.
FUEL COMPATIBILITY: ALL FUELS - INCLUDING RACE GAS, DIESEL, E15, E85, E98
ATL Aero Tec Laboratories, based out of Ramsey, New Jersey has been making fuel system components for a wide variety of markets, including Racing, Military, and more, since 1970. For the Racing industry, ATL Aero Tec Laboratories offer a full range of fuel cells/tanks, bladders, cans, filler necks, gaskets, foams, and more
