ATL Super Cell 200 Series 22 Gallon Fuel Cell - NASCAR Xfinity/Truck/K&N - TF707 Fill Plate w/ Paddle Valve - 33 x 17 x 9.25 - FIA FT3.5 - Red SU222D
Earn [points_amount] when you buy this item.
The Super Cell 200 Series Is NASCAR Approved And Popular Within The K&N Pro Series, Pintys Series, And Whelen Modified Series. It Is Also A Fixture In The ARCA Racing Series. The Heavy Duty Ballistic Nylon Construction Of The Super Cell 200 Series Bladder Is A Cost Effective Alternative To Super Cell 300 Series Kevlar Reinforced Fuel Bladder Yet Still Yields The Same FIA FT3.5 Approval.
THE CONTAINER
Constructed of 20 Gauge Steel. Powder Coated Red.
THE BLADDER
THE HEART OF THE FUEL SYSTEM!
FIA FT3.5 Approved Crash-Resistant, Flexible Heavy-Duty 3-Layer Ballistic Nylon-Reinforced Bladder with Cross-Drilled Composite Nutring Installed.
THE FOAM BAFFLING
Fully Foam Baffled for Anti-Slosh and Explosion Suppression.THE FILL PLATE
NASCAR ULTRA-LIGHT BILLET ALUMINUM PADDLE-VALVE ASSEMBLY: Anodized Aluminum 2 1/2 O.D. Fill With Aluminum Paddle-Valve, Spring-Loaded Bullet 1 1/2 O.D. Vent Valve, and (1) #10 Outlet.
THE FUEL PICK-UP
A Single ScavenJet Pick-Up Adhered to the Right-Rear Corner. Hose Included.

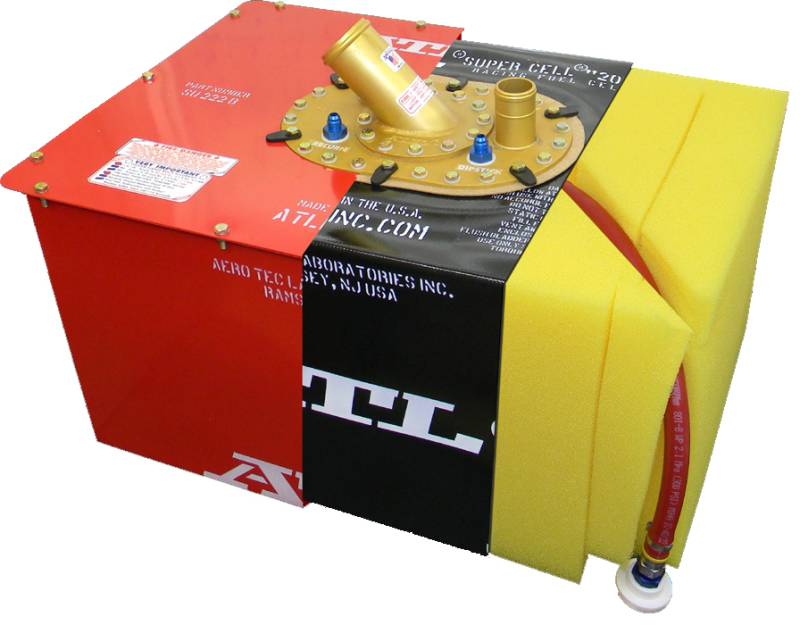

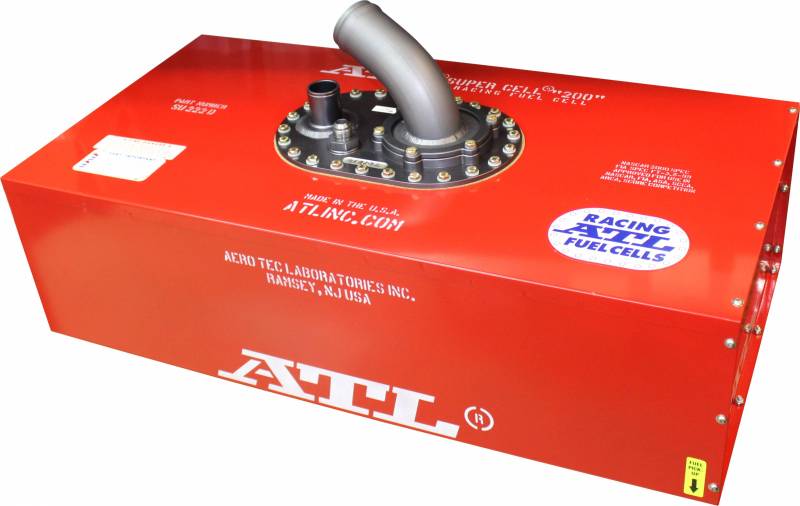

NOTE: Image is for reference only and shows model SU222D-EL. This cell has a Flange Load Container, not the End Load Container shown in image.
ATL Aero Tec Laboratories, based out of Ramsey, New Jersey has been making fuel system components for a wide variety of markets, including Racing, Military, and more, since 1970. For the Racing industry, ATL Aero Tec Laboratories offer a full range of fuel cells/tanks, bladders, cans, filler necks, gaskets, foams, and more
