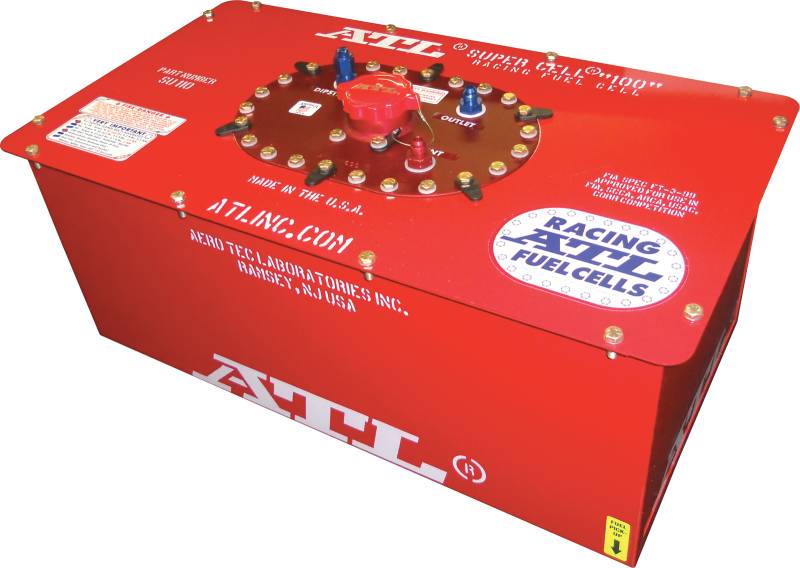

ATL Super Cell 100 Series Fuel Cell - 10 Gallon - 24 x 13 x 10 - Red - FIA FT3
Earn [points_amount] when you buy this item.
The Super Cell 100 Series Features ATLs Most Popular Flexible Fabric Bladder. Whether You Race On A Circle Track, A Road Course, A Dirt Oval Or Off-Road, The Super Cell 100 Series Offers A Wide Variety Of Shapes And Sizes For Your Race Vehicle. If You Are Looking For A Light-Weight Fuel Cell And Plan On Running A Modest Ethanol Content Fuel (Up To E15), Then The Super Cell 100 Is Ideal For You!
THE CONTAINER
Constructed of 20 Gauge Steel - Powder Coated Red NOTE: -AC Signifies ALUMINUM Container is STANDARD - Aluminum Containers OPTIONAL For All Other Models.
THE BLADDER
THE HEART OF THE FUEL SYSTEM!
FIA FT3 Approved 3-Layer Ballistic Nylon-Reinforced Flexible Fuel Bladder with Cross-Drilled Composite Nut-Ring Installed. Crash- Resistant, Deforms on Impact.

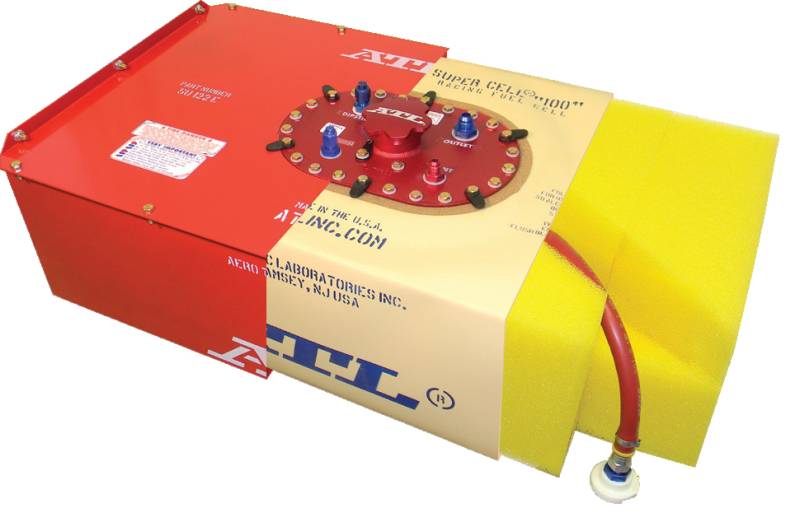

THE FOAM BAFFLING
Fully Foam Baffled forAnti-Slosh and Explosion Suppression.THE FILL PLATE
Anodized Aluminum Fill Plate Featuring Billet Aluminum Twist Cap with Flap-Type Roll-Over Valve, (1) #6, #8 or #10 Outlet Bulkhead Fitting (See Chart Below), (1) #6 Vent-Check Roll-Over Valve, (1) #6 Return, and (1) #6 Dipstick.
THE FUEL PICK-UP
A Single ScavenJet Pick-Up Adhered to the Right-Rear Corner. Hose Included.
NOTES
* SU105 uses a 4x6 fill plate, will not accept any options except for SF110 Safety Foam
ATL Aero Tec Laboratories, based out of Ramsey, New Jersey has been making fuel system components for a wide variety of markets, including Racing, Military, and more, since 1970. For the Racing industry, ATL Aero Tec Laboratories offer a full range of fuel cells/tanks, bladders, cans, filler necks, gaskets, foams, and more
