ATL Bantam Series Fuel Cell - 15 Gallon - 24 x 18 x 10 - FIA FT3
Earn [points_amount] when you buy this item.
THE THINNEST & LIGHTEST FIA FT3 FUEL BLADDER
The BANTAM Series Is A Must If You Are Looking For The Ultimate Weight Advantage And/Or Fuel Capacity, Regardless Of What You Drive. It Is Also Popular Amongst The Northeast Dirt Modified Community As Well As Asphalt Late Model Teams Who Are Looking For Maximum Fuel Capacity During Extra Distance Races. If Weight And Fuel Capacity Are Critical, Then Look No Further. The BANTAM Series Is The Thinnest And Lightest FIA FT3 Approved Fuel Bladder On The Market Today!ULTRATHIN - ONLY .030" THICK - MAXIMUM FUEL CAPACITY!
THE CONTAINER
Constructed of .063 Lightweight Aluminum.
THE BLADDER
THE HEART OF THE FUEL SYSTEM!
Ultra-Thin, Crash-Resistant FIA FT3 Approved Kevlar Reinforced Bladder. Only .030 (0.7mm) Thick (Nominal) with Cross-Drilled Composite Nut-Ring Installed.
THE FOAM BAFFLING
Fully Foam Baffled for Anti-Slosh and Explosion Suppression.
THE FILL PLATE
Lightweight Anodized Aluminum Fill Plate. Featuring Billet Aluminum Twist Cap with Flap-Type Roll-Over Valve, (1) #6, #8 or #10 Outlet Bulkhead Fitting, (1) #6 Vent-Check Roll-Over Valve, (1) #6 Return, and (1) #6 Dipstick.
THE FUEL PICK-UP
A Single ScavenJet Pick-Up Adhered to the Right-Rear Corner. Hose Included. NOTE: Alternate Pick-Up Locations Available Upon Request.

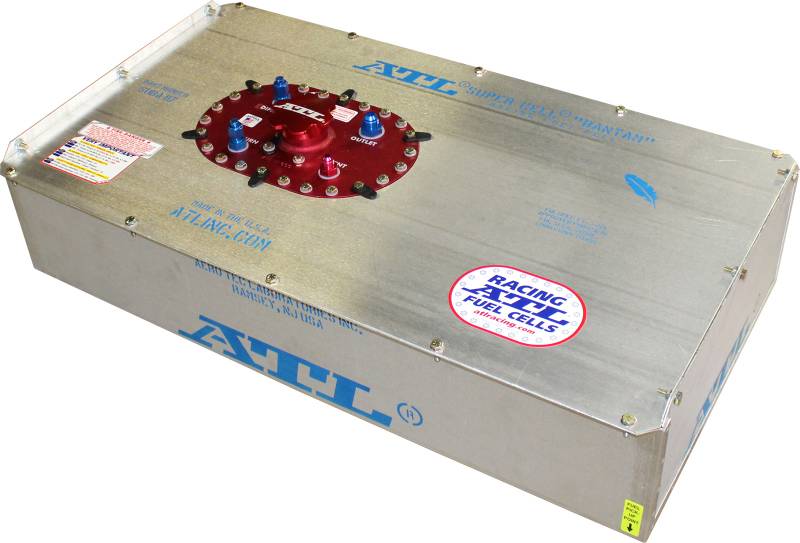

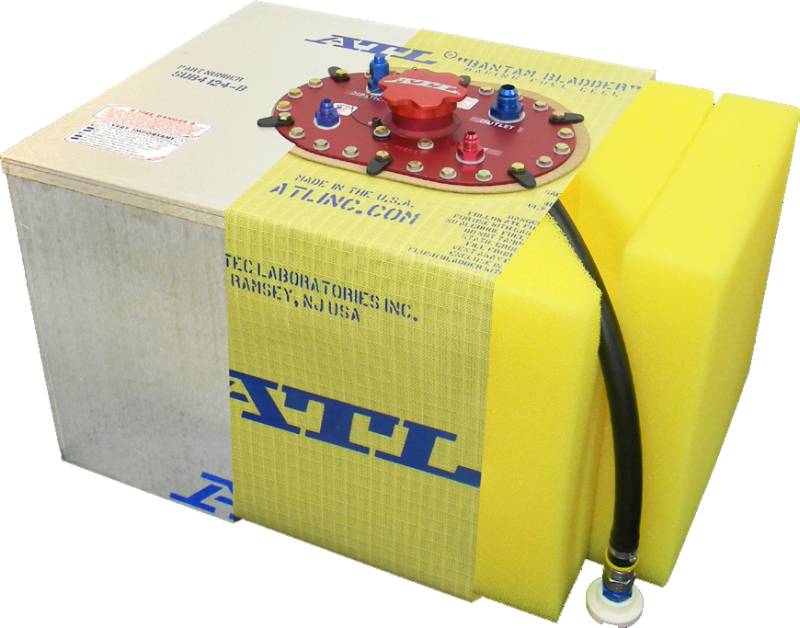

Image is for reference only and shows model SUBA117.
ATL Aero Tec Laboratories, based out of Ramsey, New Jersey has been making fuel system components for a wide variety of markets, including Racing, Military, and more, since 1970. For the Racing industry, ATL Aero Tec Laboratories offer a full range of fuel cells/tanks, bladders, cans, filler necks, gaskets, foams, and more
