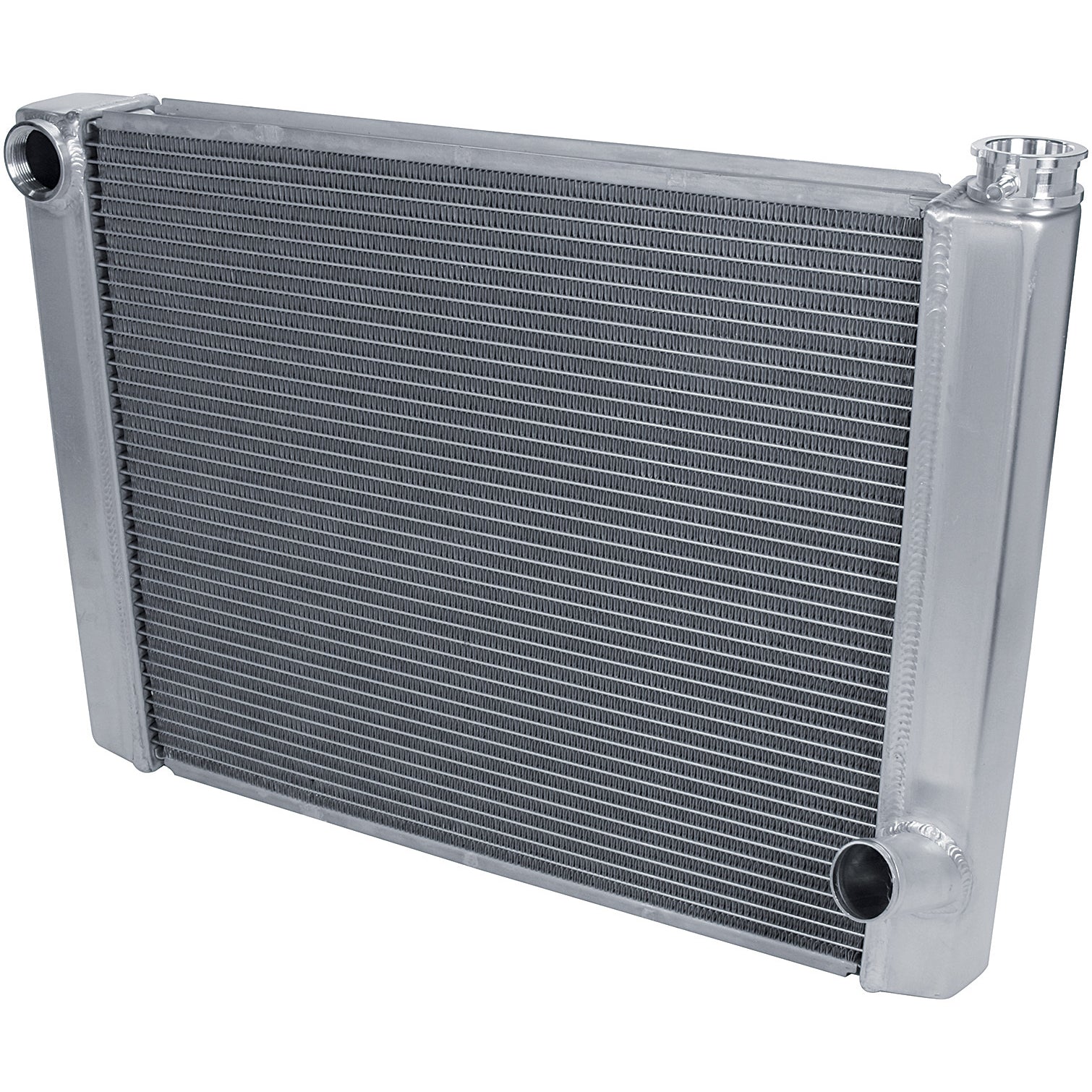

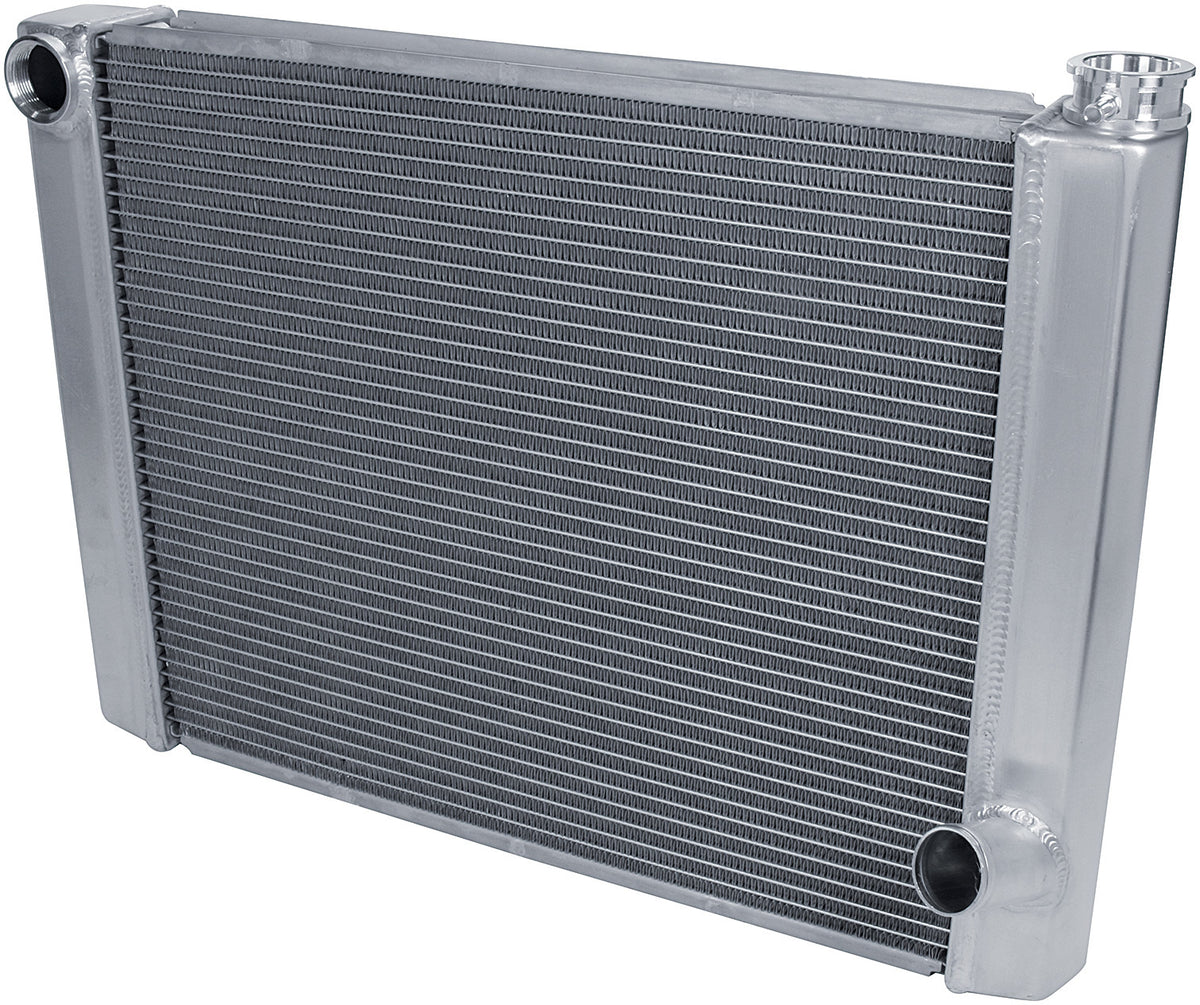

Allstar Performance Triple Pass Aluminum Radiator - Chevy - 19" x 28" x 3"
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov
Aluminum radiators are fully welded units designed to hold up to the stresses of most motorsports and street use applications. Radiators feature two rows of 1 Inch wide tubes that are furnace brazed to the tanks and a fully welded billet aluminum filler neck with a removable overflow fitting.
All radiators feature a slightly raised and inward angled 1-3/4 Inch beaded lower outlet for applications that require the radiator to be mounted lower in the chassis. Sizes listed are overall dimensions, core widths are approximately 5 Inch less than overall width.
Radiator caps rated at 28 lbs or less are recommended for all aluminum radiators. Triple pass radiators circulate coolant across the top portion of the radiator, back across the mid-section and through the bottom allowing maximum heat dissipation.
This style radiator requires a high flow water pump to be most effective. These radiators feature a universal 1-5/8 Inch-12 ORB fitting inlet design that allows for multiple inlet fitting options (sold separately).
The lower outlet is a fully welded 1-3/4 Inch standard hose fitting for push-on style radiator hoses. Overall size 19 Inch x 28 Inch.
The best performance upgrades mean little if the engine can't stay cool. Allstar Performance Aluminum Radiators are engineered to deliver efficient heat transfer that helps maintain consistent operating temperatures while supporting horsepower, reliability, and long-term engine life.
Constructed from fully welded aluminum for outstanding strength and durability, these radiators are built to handle the vibration, pressure, and demanding environments found in racing and high-performance vehicles. Whether you're building a competition car, upgrading a street machine, or replacing a worn factory radiator, Allstar Performance Aluminum Radiators provide dependable cooling performance when every degree matters.
Details:
- Thread: 1-5/8 Inch-12 ORB
- Finish: Natural
- Size: 28 Inch W x 19 Inch H x 2.25 Inch D
- Color: Natural
- Passes: Triple Pass
- Inlet Location: Driver Side
- Outlet Location: Passenger Side
- Material: Aluminum
- Sold As: Each
- Radiator
- 28 in W x 19 in H x 2.25 in D
- Triple Pass
- Driver Side Inlet
- Passenger Side Outlet
- Aluminum
- Natural
- Sold Individually
Product Description:
Specialty items for the Shop, Trailer and Track. The Allstar Performance brand offers thousands of hard-to-find, specialty items that cover many segments in the performance aftermarket. For over 30 years, customers worldwide have come to rely on the quality, affordable and practical items available from Allstar Performance.
