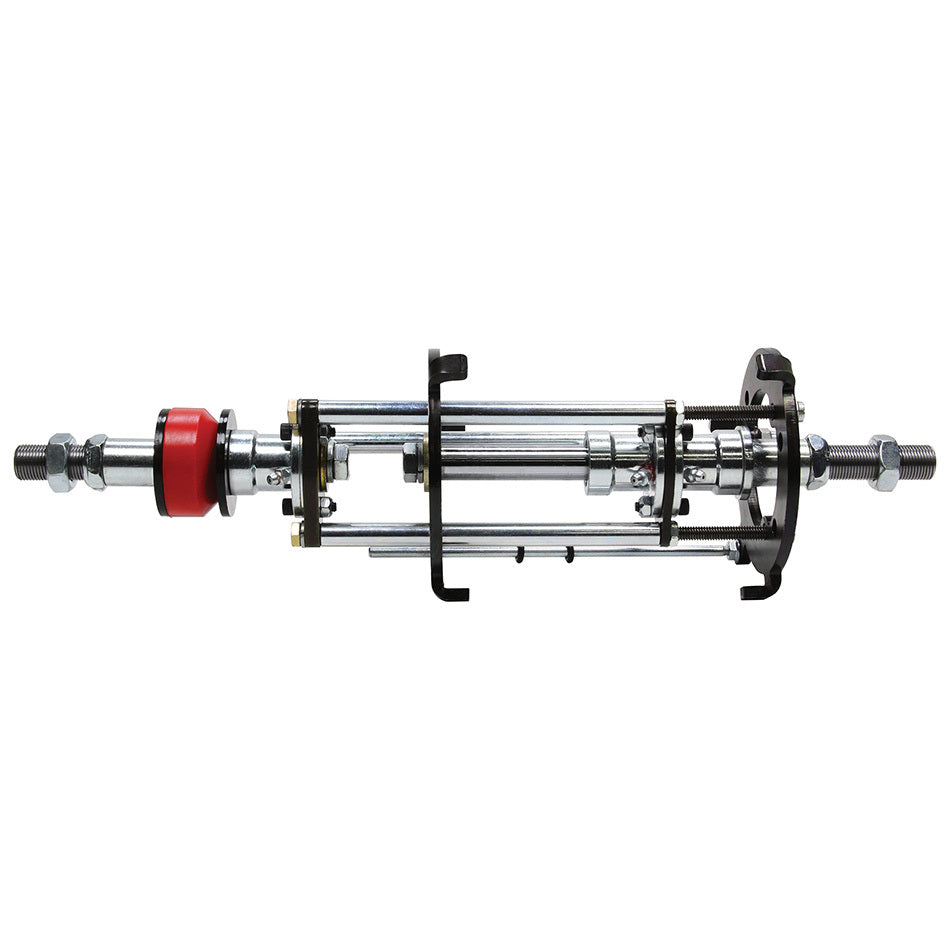

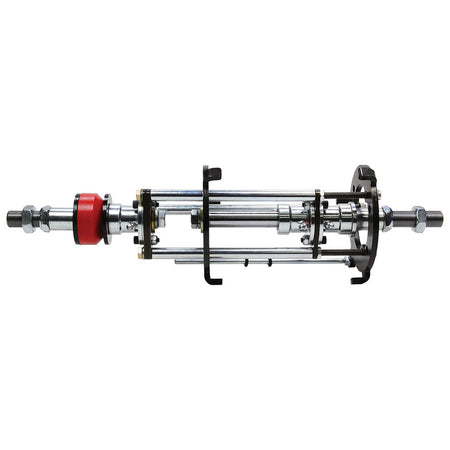

Allstar Performance Spring Style Pull Bar (Dual Shaft)
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov
Torque link uses a coil spring to absorb engine torque and increase traction to rear tires. The twin shaft design allows engine torque and brake bushings to be adjusted separately.
A single red (87 durometer) poly bushing is included. Other bushings are available for additional tuning options.
Unit requires a 5 Inch OD x 6-5/8 Inch or 7 Inch tall coil spring, sold separately. Unit is 18-1/2 Inch long overall and most commonly used with two 3/4 Inch-16 rods ends (1-RH Female and 1-LH Male) and a 3/4 Inch suspension tube.
Subtract 21-1/2 Inch from center to center of the chassis mounting distance to determine required tube length. 8.5 lbs., without spring. Replacement Parts: ALL99190 Main Shaft, ALL99192 Stand Off Tube 8.25 Inch, ALL99193 Spring Studs 5/16 Inch-18 3-Pack, ALL99194 Travel Indicator Kit, ALL99195 Brake Bushing Spacer, ALL99178 Steel Bushing Washer (required between bushings when stacking), ALL99179 Aluminum Bushing Washer (required between bushings when stacking), ALL56372 Poly Bushing Yellow 3.375 Inch OD, ALL56374 Poly Bushing Red 2.250 Inch OD, ALL99196 Rod End Plate.
Details:
- Overall Length: 18-1/2 Inch
- Material: Steel
- Sold As: Each
- Torque Link
- Spring Style Pull Bar
- Dual Shaft
- 18-1/2 in Long
- 5 in Diameter Spring
- Steel
- Sold Individually
