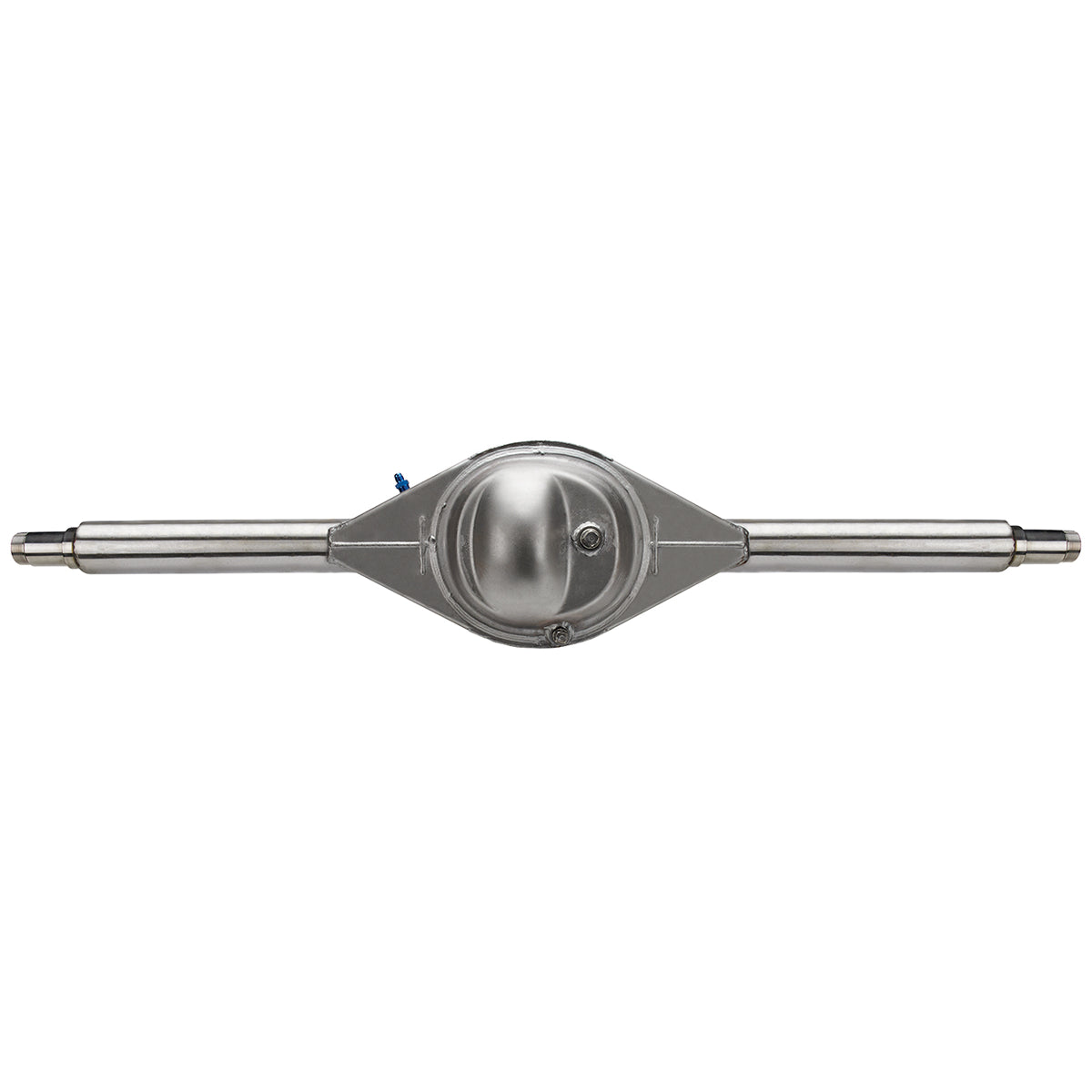

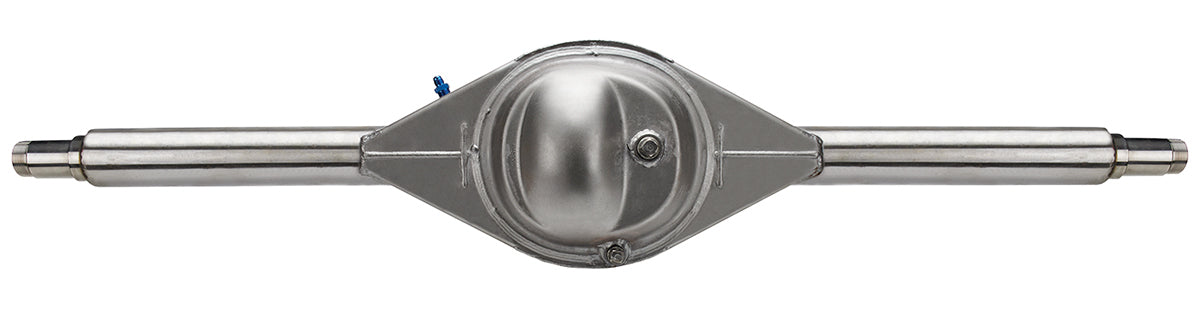

Allstar Performance Heavy Duty Ford 9"Floater Bare Housing - 63" w/ 2" Offset
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov
Bare housings are jig welded for correct alignment using all new components including a fabricated center section, new 3 Inch. OD x 3/16 Inch wall axle tubes and include a vent fitting, carrier mounting studs, fill and drain plugs. Dimensions listed are from hub face to hub face.
This housing measures 63 Inch hub face to hub face with 2.0 Inch pin snouts. The pinion centerline is located 2 Inch to the left of the housing centerline when viewed from the rear of the housing, giving 29-1/2 Inch to the driver side hub face and 33-1/2 Inch to the passenger side hub face. Center section is shown for dimensional purpose only and is not included with bare housings.
Note: Please measure and inspect housing before welding brackets or painting. Housing is non-returnable if modified or custom. Welding suspension brackets on rear end housings can cause warping.
Details:
- Outside Diameter: 3 Inch
- Finish: Natural
- Size: 63 Inch Width
- Color: Natural
- Overall Length: 63 Inch
- Ring Gear Diameter: 9 Inch
- Material: Steel
- Sold As: Each
Application Notes:
- Ford 9 Inch floater rear end - 63 Inch hub face to hub face - 2 Inch Offset - 2.0 Inch pin
- Rear Axle Housing
- Ford 9 in Floater
- 63 in Wide
- 2 in Offset
- 3 in Tubes
- 2 in OD Snout
- Steel
- Natural
- Sold Individually
