Allstar Performance Ford 9" Non Floater Housing Kit 60" w/ GM Mounts
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov
Ford 9 Inch Flanged Axle Housing Kit for GM Intermediate Metric Chassis. Housing kit fits the 1978-88 GM intermediate chassis.

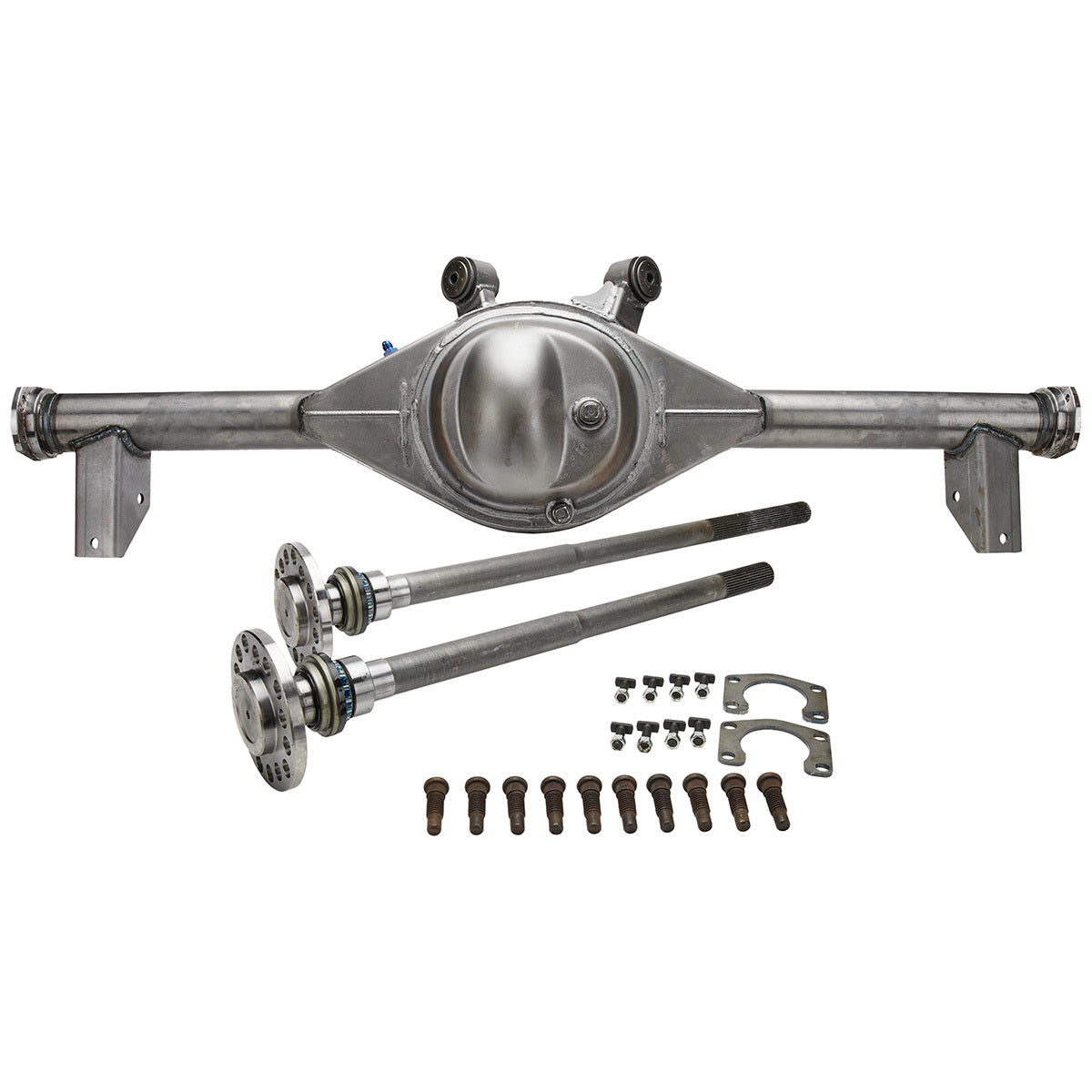

Replace a stock GM 7.5 Inch rear-end with the much stronger Ford 9 Inch style. Kit includes a new fabricated center section, new axle tubes with large bearing late Ford/Torino style-ends, 31-spline axles with bearings and seals installed, drilled for studs with 5 on 4-1/2 Inch or 5 on 4-3/4 Inch bolt circles.
Choose from two widths, 58 Inch and 60 Inch axle flange to axle flange. Ford 9 Inch Housing Kit 60 Inch With Trailing Arm Brackets. Trailing arm mounting brackets installed to position the pinion angle approximately 4 Degree down.
Note: this kit includes two unequal length axles, locating the pinion approximately in stock (centered) location.
Details:
- Fits: GM G-Body Intermediate Metric 1978-88
- Finish: Natural
- Size: 3 Inch Axle Tubes
- Color: Natural
- Spline Count: 31 Spline
- Overall Length: 60 Inch
- Ring Gear Diameter: 9 Inch
- Bolt Pattern: 5 x 4.50 Inch, 5 x 4.75 Inch
- Degree Angle: 4 Degree
- Material: Steel
- Sold As: Kit
Application Notes:
- GM G-Body Intermediate Metric Chassis 1978-88
- Rear Axle Housing
- Ford 9 in
- 60 in Wide
- Offset
- 5 x 4.5 / 5 x 4.75
- 3 in Tubes
- Mounts Included
- Solid Axles
- Steel
- Natural
- GM G-Body 1978-88
- Kit
Product Description:
