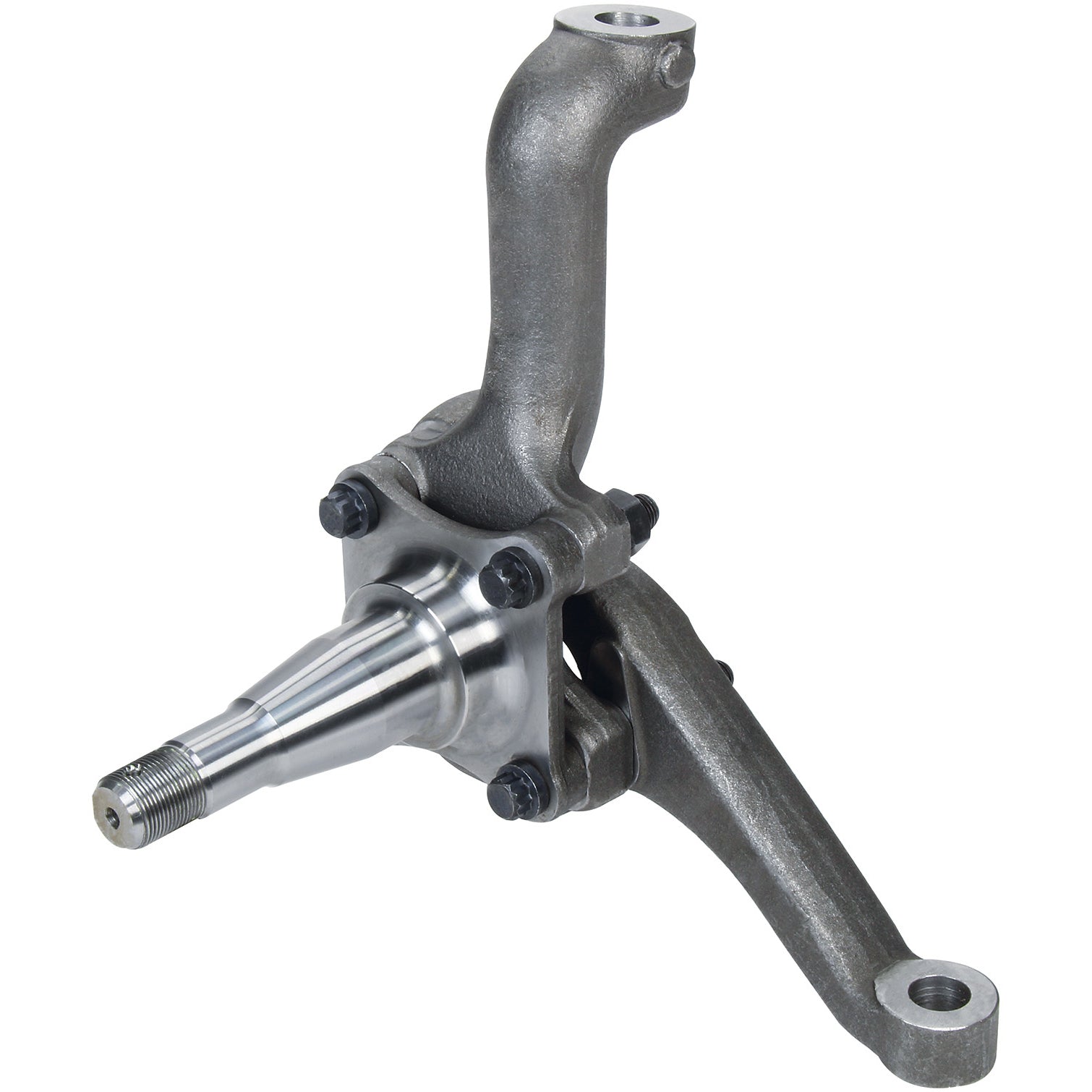

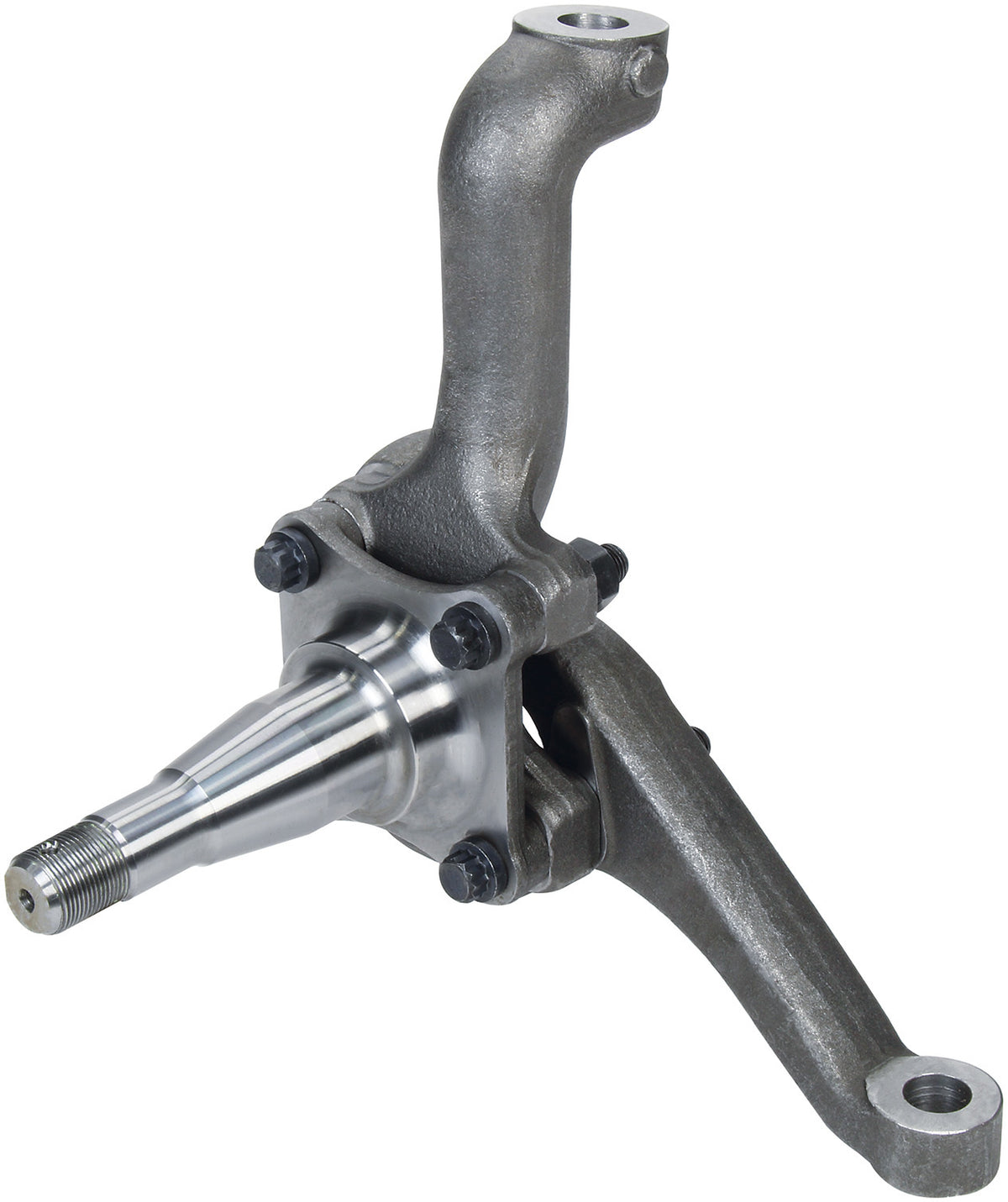

Allstar Performance AMC Pacer Spindle - 1-1/2" Taper Lower Ball Joint
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov
The Allstar Performance AMC. Pacer spindle uses a modular design that lets the spindle interchange from left to right simply by flipping the steering arm. It features a 7 Degree pin inclination and a 1-1/2 Inch per foot upper ball joint taper.
The spindle uses the same spindle pin as the Mustang II and Pinto, so it accepts Granada or Hybrid style rotors. The steering arm has been reamed to a straight hole to accept a 5/8 Inch bolt and rod end.
Features and Benefits:
- Modular design interchanges from left to right by flipping the steering arm
- 7 Degree pin inclination
- 1-1/2 Inch per foot upper ball joint taper
- 1-1/2 Inch per foot lower ball joint taper
- Uses the same spindle pin as the Mustang II and Pinto
- Steering arm reamed to a straight hole for a 5/8 Inch bolt and rod end
- Forged steel construction
Fitment Notes:
- Accepts Granada or Hybrid style rotors
- Lower ball joint taper is 1-1/2 Inch per foot
- Mounts on either the driver or passenger side by flipping the steering arm
Note: The caliper bracket for the GM Metric caliper is sold separately as ALL55962.
Details:
- Finish: Natural
- Size: 1-1/2 Inch Per Foot Lower Ball Joint Taper
- Color: Natural
- Location: Driver Or Passenger Side
- Degree Angle: 7 Degree
- Material: Forged Steel
- Sold As: Each
Application Notes:
- AMC Pacer - Accepts Granada Or Hybrid Style Rotors
- Spindle
- Stock Pin Height
- 7 Degree
- 1.5 in Taper
- Passenger / Driver Side
- Forged Steel
- Natural
- AMC Pacer
- Sold Individually
Product Description:
Specialty items for the Shop, Trailer and Track. The Allstar Performance brand offers thousands of hard-to-find, specialty items that cover many segments in the performance aftermarket. For over 30 years, customers worldwide have come to rely on the quality, affordable and practical items available from Allstar Performance.
