Aeromotive Phantom Dual Stealth 340 Fuel Pump System

Only 2 left
SKU: AFS18309

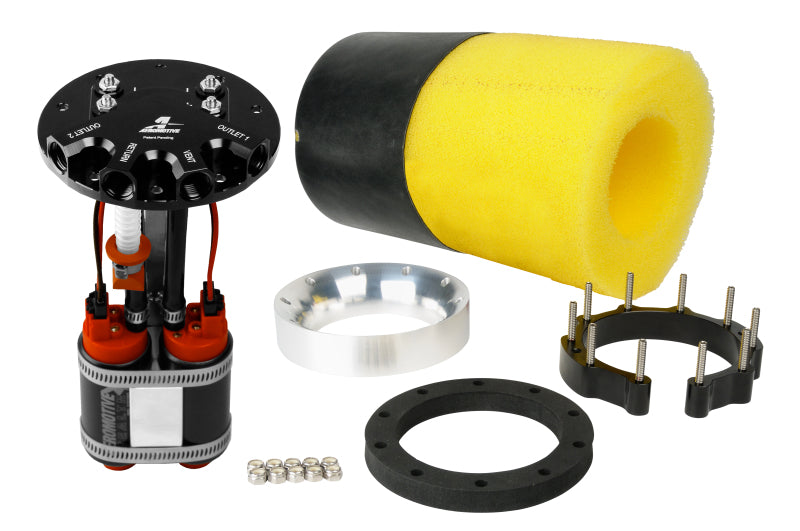

Fuel Pump, Dual Phantom, Electric, In-Tank, 680 gph at 90 psi, Dual 6 AN Female O-Ring Outlets, 6 AN Female O-Ring Return / Vent, Install Kit, E85 / Gas, Kit

Earn [points_amount] when you buy this item.

Regular price $947.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Chromium, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Dual Phantom Stealth Fuel System Today's aftermarket world makes it easy to pick up the phone and order 1000 HP for your street car. This has created several challenges for fuel delivery, ranging from hot fuel handling to pump noise. Aeromotive has accepted this challenge and hurdles past them with the latest addition to the Phantom line: the Dual Phantom. The Dual Phantom comes loaded with two 340lph pumps, an additional set of electrical bulkheads, and a larger capacity foam and bladder. Remarkably, it does not take up any additional space. The dual pumps provide opportunity for supporting big power (see power ratings below) while remaining OE quiet. Separate electrical bulkheads allow for an ?on demand" fuel system, which reduces the amount of returned fuel and reduces the tank temperature, making vapor lock and cavitation a thing of the past. Also, this feature is a must when a redundant (back up) pump is needed in extreme conditions, such as off-road, desert, and endurance racing. The larger capacity foam and bladder combat fuel slosh while retaining enough fuel to feed the dual pumps. And the best feature is all of this done from your stock tank with no welding or fabrication! More about the Phantom Are you considering a switch to EFI or swapping in that late model motor? What has become the latest trend in hot rodding has been plagued by fuel delivery. The most common question is: ?what do I do for a tank"? Until now, it's been one of three options: weld in a sump to your tank, go with a fuel cell or pay for a custom tank. Aeromotive's Phantom Fuel System gives you a fourth option: putting a high performance fuel pump inside virtually any fuel tank, including your factory tank. Simply cut a hole in your tank and measure the depth. Cut your pump hanger bracket and baffle/basket foam to length. Insert the baffle, install the retainer ring and gasket, and bolt your pump and hanger down. That's it. Now you have a fuel pump inside your factory tank capable of supporting big horsepower EFI or Carbureted. And it's whisper quiet. No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues, like vapor-lock, and no more fuel slosh. The Phantom's internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system: it's completely universal. This system will fit virtually any tank from 6" deep to 11" deep, plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. Its serious performance you will never know is there! Click here to learn more about this universal in tank fuel system. Patent No. 8,783,287 Features and Specifications:(2) 340 lph Stealth Fuel Pumps

Dual 340 Phantom Fuel Pump

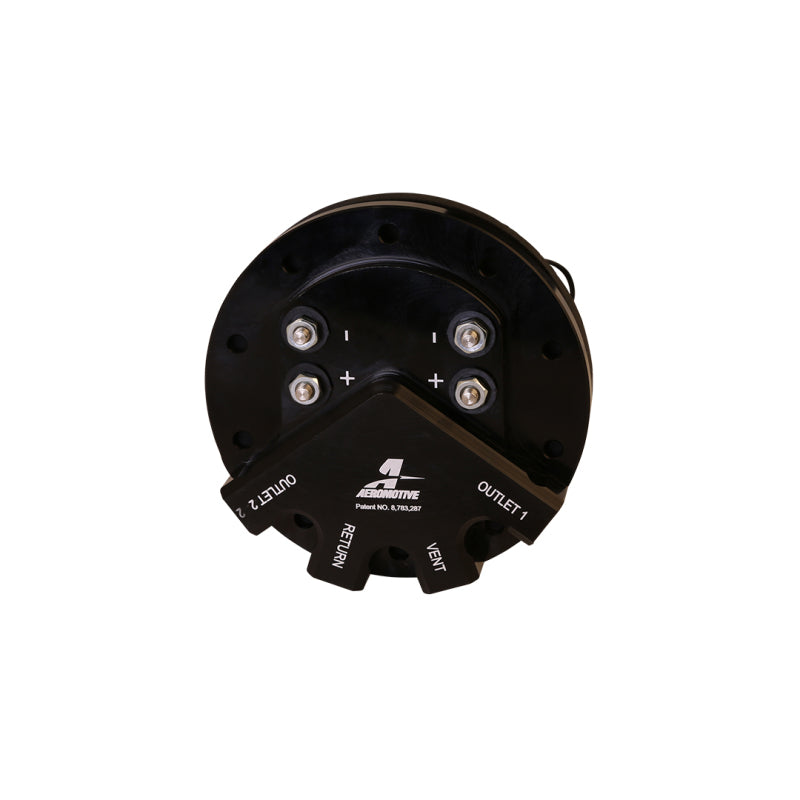

  • Two 340lph Stealth Fuel Pumps Supports 1400 HP EFI - Forced Induction, 1700 HP EFI - N/A, 1700 HP Carbureted - Forced Induction, 2000 HP Carbureted - N/A. Black anodized top hat, (4) ORB-06 Ports, (1) Return, (1) Vent

    To us, passion is defined by three generations of performance. Aeromotive is the by-product from generations of blood, sweat and tears that has shaped our knowledge and experience. Our commitment to develop the pinnacle of performance products comes from our history, our real world experiences and our passion.

  • Dual 340 Phantom Fuel Pump; Two 340lph Stealth Fuel Pumps Supports 1400 HP EFI - Forced Induction, 1700 HP EFI - N/A, 1700 HP Carbureted - Forced Induction, 2000 HP Carbureted - N/A. Black anodized top hat, (4) ORB-06 Ports, (1) Return, (1) Vent
  • Dual Phantom

    Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

    Product Descripton:

  • Fuel Pump
  • Dual Phantom
  • Electric
  • In-Tank
  • 680 gph at 90 psi
  • Dual 6 AN Female O-Ring Outlets
  • 6 AN Female O-Ring Return / Vent
  • Install Kit
  • E85 / Gas
