Home » Aeromotive Mechanical Fuel Pump 12 GPM Billet Hex Drive
Aeromotive

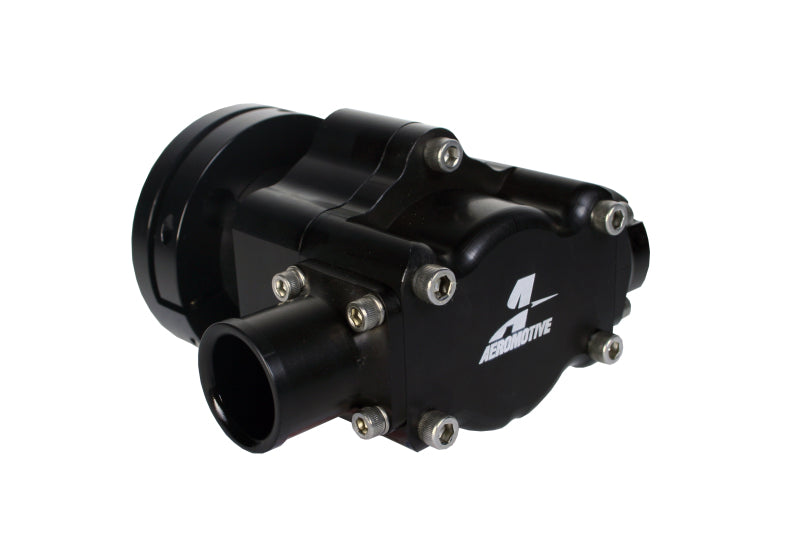

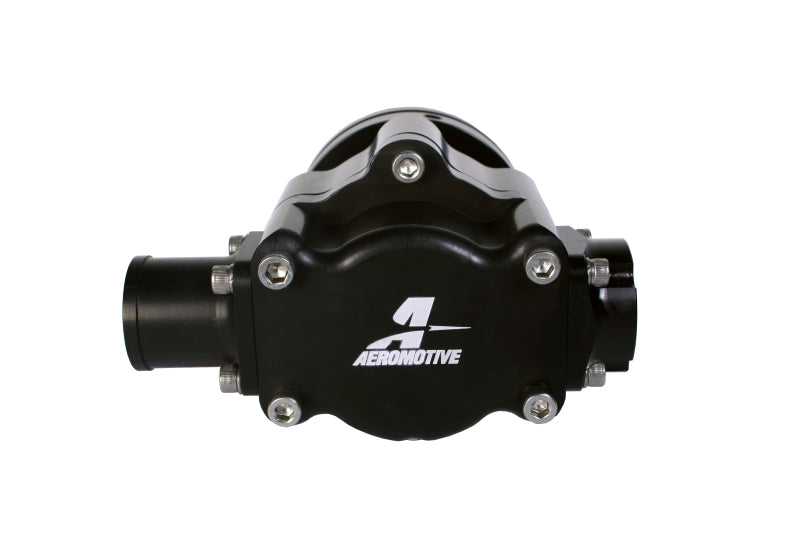

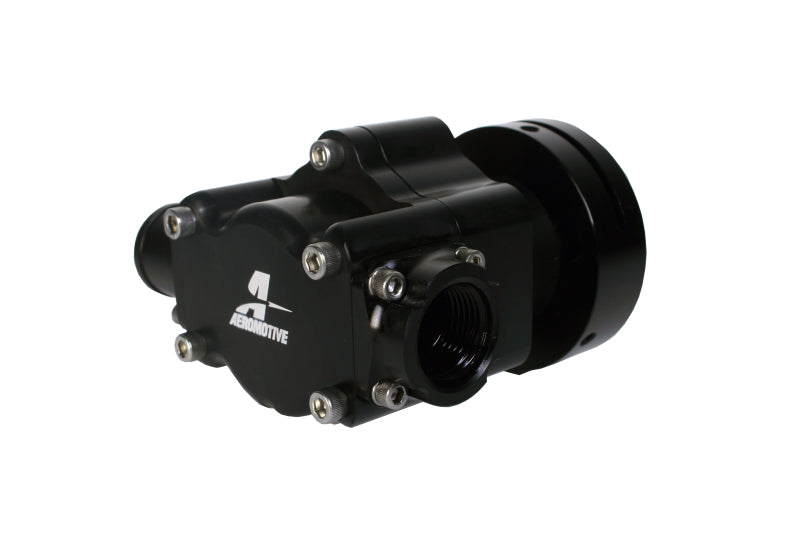

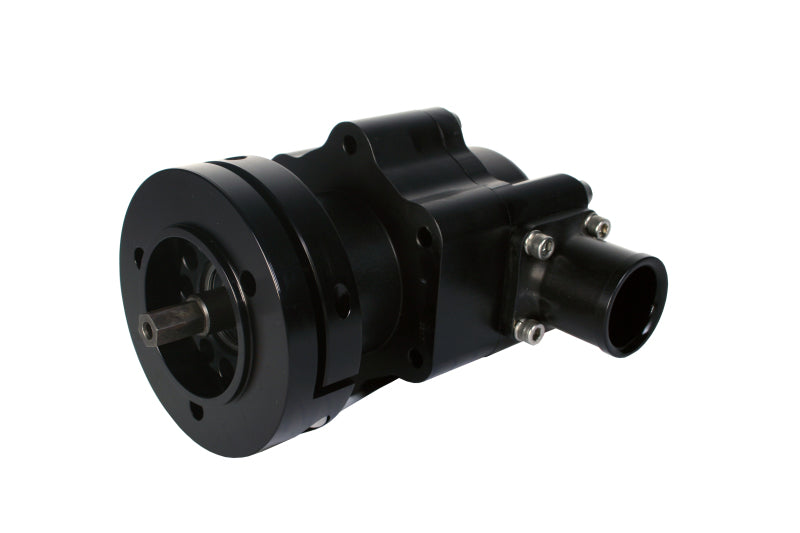

Aeromotive Mechanical Fuel Pump 12 GPM Billet Hex Drive

Only 4 left
SKU: AFS11117
Fuel Pump, Atomic Hex Drive 12 Series, Mechanical, 720 gph, 16 AN Male Inlet, 12 Female O-Ring Outlet, Aluminum, Black Anodized, Alcohol / Gas, Each

Earn [points_amount] when you buy this item.

$1,514.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Chromium, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

12 GPM Hex Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 GPM Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Hex Drive Collar with 3-bolt Enderle bolt pattern. Standard male 3/8" hex driveshaft. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators.

direct drive provides convenience

  • can handle either gas or alcohol
  • supports around 5000 HP with gas
  • supports around 2500 HP with methanol;

    To us, passion is defined by three generations of performance. Aeromotive is the by-product from generations of blood, sweat and tears that has shaped our knowledge and experience. Our commitment to develop the pinnacle of performance products comes from our history, our real world experiences and our passion.

  • Direct drive provides convenience; can handle either gas or alcohol; supports around 5000 HP with gas; supports around 2500 HP with methanol
  • Tough, Type III hard coat anodized body.
  • CNC Machined from 6061 T6 aircraft aluminum.
  • Hex Drive Collar with 3-bolt Enderle bolt pattern.
  • Standard male 3/8″ hex driveshaft.
  • Includes both 1.25′ barb and AN-16 Male inlet.
  • ORB-12 female outlet port.
  • EFI applications require high-flow return style regulators: P/N 13132,  13133,  13137 or  13113.
  • Sold Separately: Electric Priming/Starting   P/N 17301

    Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

    Product Descripton:

  • Fuel Pump
  • Atomic Hex Drive 12 Series
  • Mechanical
  • 720 gph
  • 16 AN Male Inlet
  • 12 Female O-Ring Outlet
  • Aluminum
  • Black Anodized
  • Alcohol / Gas
  • Sold Individually
    •
