Aeromotive Atomic Belt Drive Fuel Pump

In stock
SKU: AFS11115
Fuel Pump, Atomic Belt Drive, Belt or Hex Driven, In-Line, 1-1/4 in Hose Barb Inlet, 12 AN Female O-Ring Outlet, Black, E85 / Gas, Each

Earn [points_amount] when you buy this item.

$1,205.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Chromium, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

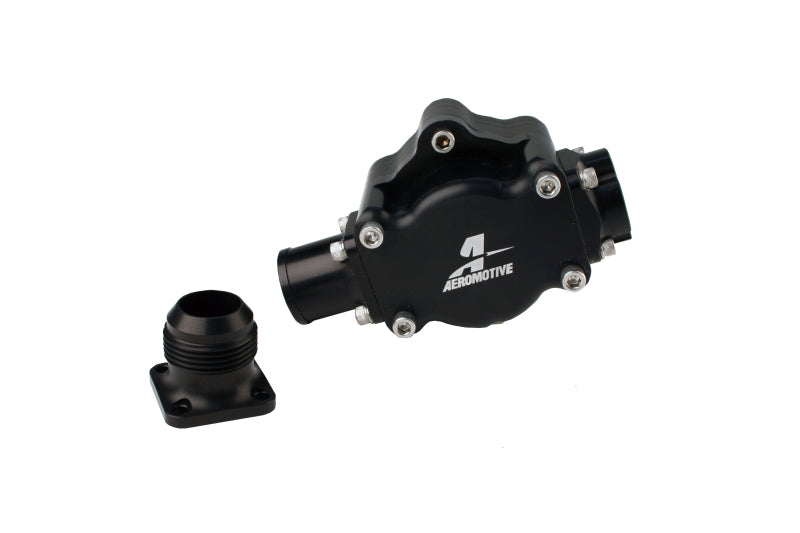

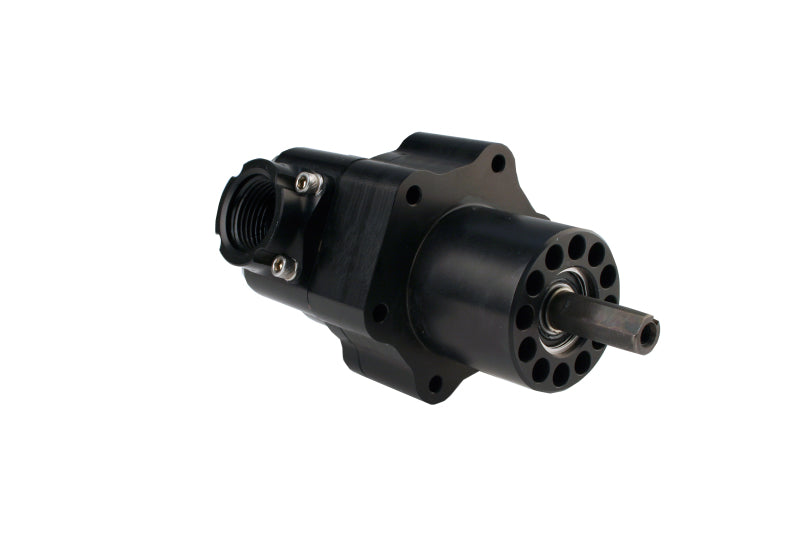

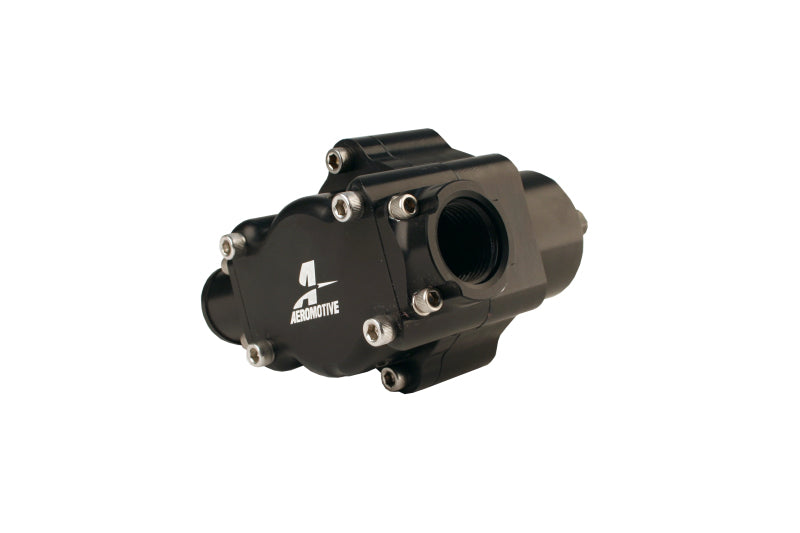

12 GPM Belt Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol, or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low-pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. Sold Separately: Mounting Bracket (P/N 11706).

flows in excess of 4500 lbs./hr.

  • supports around 5000 HP with gas
  • supports around 2500 HP with methanol
  • features removable ports;

    To us, passion is defined by three generations of performance. Aeromotive is the by-product from generations of blood, sweat and tears that has shaped our knowledge and experience. Our commitment to develop the pinnacle of performance products comes from our history, our real world experiences and our passion.

  • flows in excess of 4500 lbs/hr; supports around 5000 HP with gas; supports around 2500 HP with methanol; features removable ports;
  • flows in excess of 4500 lbs/hr; supports around 5000 HP with gas; supports around 2500 HP with methanol; features removable ports
  • High efficiency, Gerotor pumping mechanism.
  • Tough, Type III hard coat anodized body.
  • CNC Machined from 6061 T6 aircraft aluminum.
  • Includes both 1.25′ barb and AN-16 Male inlet.
  • ORB-12 female outlet port.

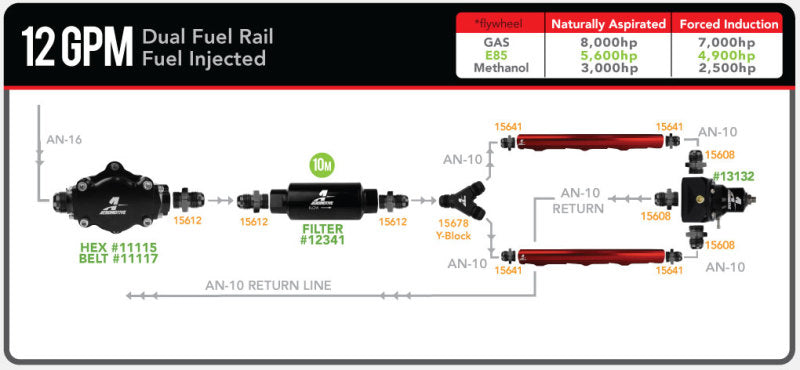

  • EFI applications require high-flow return style regulators: P/N 13132,  13133,  13137 or  13113.
  • Sold Separately: Mounting Bracket: P/N 11706 Cog Pulley: P/N 21109. Electric Priming/Starting   P/N 17301

    Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

    Product Descripton:

  • Fuel Pump
  • Atomic Belt Drive
  • Belt or Hex Driven
  • In-Line
  • 1-1/4 in Hose Barb Inlet
  • 12 AN Female O-Ring Outlet
  • Black
  • E85 / Gas
  • Sold Individually
    •
