FACTORY CALIBRATION RESISTOR OR FREE-AIR CAL, IT'S YOUR CHOICE! The X-Series Wideband Gauge and X-Series Inline Controller support the popular 4.9LSU sensor and can utilize both the factory calibration resistor and free-air calibration methods**. This allows users to take advantage of the precise factory resistor calibration when a sensor is new but then allows for free-air calibrations if the user desires when the sensor ages. It's the perfect marriage of simplicity and accuracy!
WHAT IS A WIDEBAND UEGO AIR/FUEL CONTROLLER? AEM's Wideband UEGO (Universal Exhaust Gas Oxygen, pronounced "You-Way-Go") Controllers are powerful, cost-effective tuning tools that allow users to accurately monitor the Air/Fuel Ratio (AFR) of their engine. WHY USE A WIDEBAND AIR/FUEL CONTROLLER? Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned. CAN I CHANGE THE AEM UEGO SENSOR'S CONNECTOR? No. There is a laser-etched, calibrated resistor in the sensor's connector body. This resistor is specifically created for the exact sensor that it is attached to. Modifying this will invalidate the sensor's output. * Independently tested at 360 degrees Product Testing (results reported on August 31st, 2015) against 17 competitors wideband UEGO Air/Fuel Controllers. AEM X-Series Inline with 4.9LSU wideband sensor and AEM X-Series Wideband UEGO AFR Gauge with 4.9LSU sensor recorded the fastest response times. ** Wideband UEGO sensors are wear items and their lifespan is determined by many factors including contamination from leaded fuels, automotive fluids, particulates, mechanical or thermal shock and from being unheated and exposed to the exhaust stream. Free-air calibration may correct drift as a sensor ages, but it is recommended that they are replaced as part of your vehicle's maintenance program. When performing free-air calibration, please follow the procedure outlined in the instruction manual. Display Gasoline values from 8.0:1 to 20.0:1 AFR Display Lambda values from .55 to 2.00 0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR CANbus Output Gasoline values from 8.0:1 to 20.0:1 AFR CANbus Output Lambda values from .55 to 2.00 0-5V Output Lambda values from .58 to 1.23 0-5V Output E85 values from 5.7:1 to 12.0:1 AFR 0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR 0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR ** Wideband UEGO sensors are wear items and their lifespan is determined by many factors including contamination from leaded fuels, automotive fluids, particulates, mechanical or thermal shock and from being unheated and exposed to the exhaust stream. Free-air calibration may correct drift as a sensor ages, but it is recommended that they are replaced as part of your vehicle's maintenance program. When performing free-air calibration, please follow the procedure outlined in the instruction manual. Can display AFR values in hundredths of % 52mm gauge diameter and slim 0.825" gauge depth Gauge cup depth only .200" deep! Auto dimming feature User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC) Locking connectors When tuning an engine using wideband AFR feedback control on an inertia dyno, deadtime affects the data you are looking at because it is reported in a different operating location than when it actually occurred. This means with long deadtimes, whatever changes you make to the base fueling will likely be in the wrong location. This can be particularly dangerous to high compression and high-boost forced induction vehicles, and EFI systems that use feedback control to auto-tune. Reducing deadtime improves wideband feedback control, and can provide a safer, more powerful and accurate tune. AEM's Wideband Controllers with X-Series digital technology can reduce deadtime and improve the performance of your vehicle through more accurate AFR tuning.Product Description:

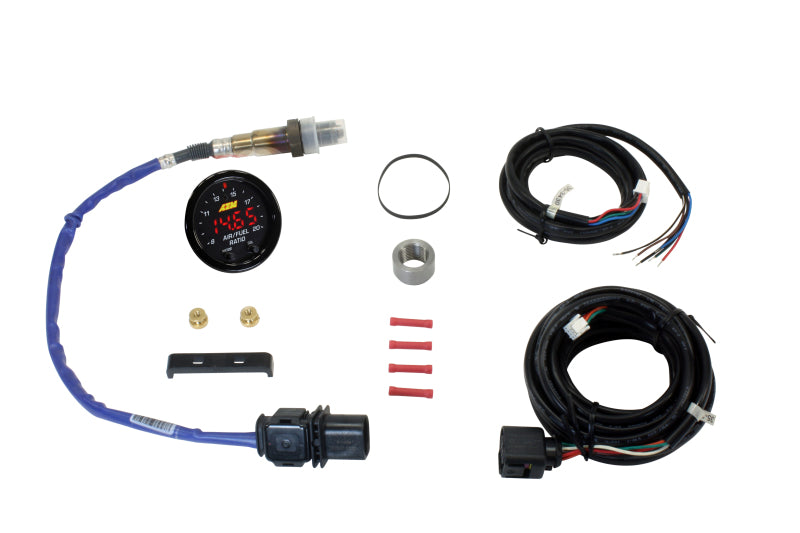

Air-Fuel Ratio Gauge X-Series UEGO Wideband 8.0:1-20:1 AFR Electric Digital 2-1/16 in Diameter Black Face Sold IndividuallyAEM's mission is to create industry-leading products to take your project to the next level. AEM's wideband air-fuel gauge line is a world-renowned product found in everything from sporty daily drivers to full-blown race cars. Our water meth injection systems, gauges, digital dashes, and fuel system products follow that same path.
