Home » AEM High Flow Electric Fuel Pump In-Line 380 lph at 90 psi 10 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet
AEM Electronics

AEM High Flow Electric Fuel Pump In-Line 380 lph at 90 psi 10 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet

In stock
SKU: AEM50-1005
Fuel Pump, High Flow, Electric, In-Line, 400 lph at 40 psi, 10 AN Female O-Ring Inlet, 6 AN Female O-Ring Outlet, Install Kit, Gas, Kit

Earn [points_amount] when you buy this item.

$174.95
Sale $196.95 $174.95
Free Shipping on orders over $149! Exclusions may apply.

  • Electric Fuel Pump
  • High Flow
  • In-Line
  • 380 lph at 90 psi
  • 10 AN Female O-Ring Inlet
  • 6 AN Female O-Ring Outlet
  • Install Kit
  • Gas
  • Kit
    • Pit Stop USA offers AEM High Flow Electric Fuel Pump In-Line 380 lph at 90 psi 10 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet at low everyday prices. Be Sure to check out all of our products from AEM including AEM Fuel Pumps.

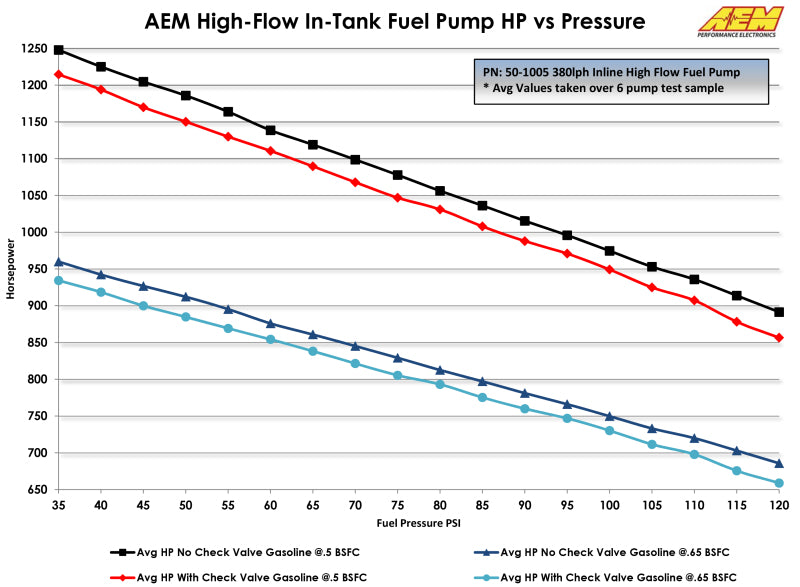

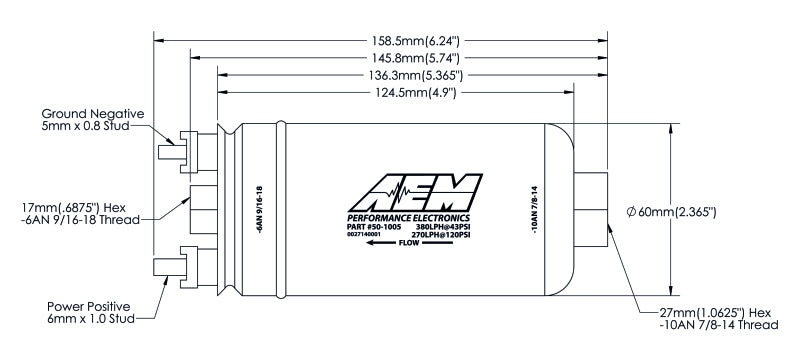

    TECHNICAL SPECS: Weight: 35.8oz (1015 grams) Outside Diameter: 60mm OD External Materials: Black plated steel with laser etching, with zamac discharge end cap Inlet Fitting: -10AN 7/8"-14 Female Outlet Fitting: -6AN 9/16"-18 Female PRV Activation: 150 PSI Impeller Design: Roller vane with ceramic end plate VOLTAGE SPECS: Connector Terminal: 6mm stud positive, 5mm stud negative Min Voltage Input: 10 volts Max Voltage Input: 18 volts Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v) Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v) Fuse: 25 amps (13.5v) * Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities. Your vehicle's factory fuel pump wiring may not be adequate enough to handle the current draw of AEM's High Flow Fuel Pump. Please refer to the Electrical Requirements section in the instructions document for proper wiring. You can download a copy of the instructions below. Although AEM's High Flow Fuel Pumps are the same physical size as many OEM fuel pumps, they may not be appropriate for a specific application. You can consult the Vehicle Search function on our website to see whether a pump is recommended for your vehicle. The Vehicle Search function should be used as a reference only. It is imperative that you check the fuel pump sizing for your vehicle before purchasing an AEM High Flow Fuel Pump. AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made.

  • Popular "044 Style" physical configuration but with AN inlet & discharge port connections
  • Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost)
  • Installs externally or in-tank
  • Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI
  • Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
  • Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
  • Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves

    • Product Description:

  • Fuel Pump
  • High Flow
  • Electric
  • In-Line
  • 400 lph at 40 psi
  • 10 AN Female O-Ring Inlet
  • 6 AN Female O-Ring Outlet
  • Install Kit
  • Gas
  • Kit
    • AEM's mission is to create industry-leading products to take your project to the next level. AEM's wideband air-fuel gauge line is a world-renowned product found in everything from sporty daily drivers to full-blown race cars. Our water meth injection systems, gauges, digital dashes, and fuel system products follow that same path.
